控制
水平角度
360°全方位
上下角度
-10° ~ 190°
人工控制速度
0.5° ~ 90°/s
Preset
256
预置点偏差范围
0.225°
预置点调用速度
5° ~ 400°/s
预定程序
8
群组巡弋
4
巡航点
4
隐私遮罩
24
8
24
自动追踪
开/关(旋转和倾斜速度比例缩放比率)
电源关闭后恢复
是
看门功能
预置点, 预定程序, 群组巡弋, 巡航
自动翻转
数字/ 机械 / 关闭
数字慢快门
开 / 关
移动侦测
开 / 关
移动侦测
开 / 关
日/夜: 机械 IR 过滤
开 / 关
图像反转
开 / 关
图像固定
开 / 关
报警输入
4
报警输出
1
报警动作
预置点, 预定程序, 群组巡弋, 巡航
常规
24V AC ± 10%, 3A
风扇
On: 35°C / 95°F
加热器
On: -7°C / 19.4°F ; Off: 3°C / 37.4°F
应用
网络存储
GV-NVR, GV-System, GV-Backup Center, GV-Recording Server
手机支持
GV-AView for Android Smartphone,
GV-Eye HD for iPad, GV-Eye for
iPhone and iPod Touch, GV-GView
for Windows PDA, GV-MSView for
Windows Smartphone, GV-SSView
for Symbian Smartphone, 3G-enabled
phone.
实时监看
IE , GV-MultiView
CMS服务器支持
GV-Control Center, GV-Center V2, GV-VSM

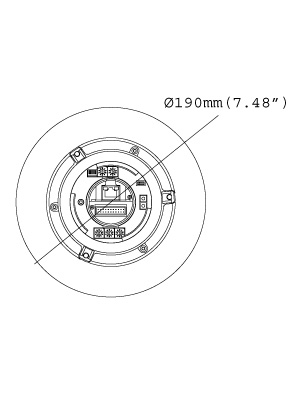

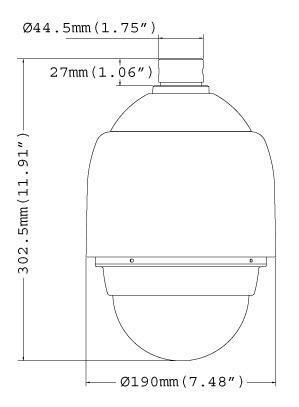

Click for larger image.
Click for larger image.

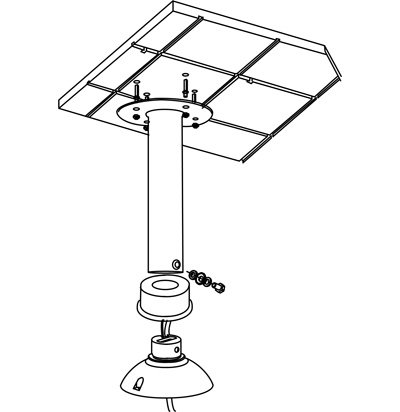

Straight Tube Mount
Standard Pendent Mount
Mini Pendent Mount
Wall Box Mount
Corner Plate Mount
Corner Thin Box and Standard/Min Pendent Mount
Pole Thin Direct Mount
Pole Thin Box Mount
Part Number
Number Name
Details
81-D7H03-ST1
Straight Tube
(25 cm)
Height: 250 mm / 9.8 in
Diameter: 50 mm / 2 in
Weight: 1 kg / 2.2 lb
Supplied with rubber washer-8 x 1,
pendent tube washer x 1, spring washer -8 x 1, waterproof rubber x 1, M8-12 screw x 1
81-D7H03-ST2
Straight Tube
(50 cm)
Height: 500 mm / 19.7 in
Diameter: 50 mm / 2 in
Weight: 1.8 kg / 4 lb
Supplied with rubber washer-8 x 1,
pendent tube washer x 1, spring washer -8 x 1, waterproof rubber x 1, M8-12 screw x 1
Dimensions (L x W x D):
184 x 104 x 115.2 mm / 7.24 x 4.09 x 4.54 in
Weight: 0.6 kg (1.2 lb)
Supplied with rubber washer-8 x 1, pendent tube washer x 1, spring washer-8 x 1, M8-12 screw x 1.
Dimensions (L x W x D):
348 x 104 x 138.6 mm / 13.7 x 4.1 x 5.5 in
Weight: 1.5 kg / 3.3 lb
Supplied with rubber washer-8 x 1,
pendent tube washer x 1,
spring washer-8 x 1, M8-12 screw x 1
81-D7H05-CST
Corner Plate Mount
Dimensions (L x W x D):
222 x 204 x 117 mm / 8.7 x 8 x 4.6 in
Weight: 2 kg / 4.4 lb
Supplied with washer-8 x 4,
spring washer x 4, M8-16 screw x 4,
M8 nut x 4
81-D7H05-CTB
Corner Thin Box Mount
Dimensions (L x W x D):
300 x 164 x 222 mm / 11.8 x 6.5 x 8.7 in
Weight: 3.05 kg / 6.7 lb
Supplied with washer x 4, M8-16 screw x 4, spring washer x 4
Power Box can be set inside the thin box.
81-D7H05-PTB
Pole Thin Box Mount
Dimensions (L x W x D):
291 x 136 x 242 mm / 11.5 x 5.4 x 9.5 in
Weight: 3.1 kg / 6.9 lb
Supplied with M8-16 screw x 4, washer x 4, spring washer x 4, stainless steel straps x 4
Power Box can be set inside the thin box.
81-D7H05-PTD
Pole Thin Direct Mount
Dimensions (L x W x D):
232 x 136 x 60 mm / 9.1 x 5.4 x 2.4 in
Diameter: 112~114 mm / 4.4 ~ 5.5 in
Weight: 0.7 kg / 1.6 lb
Supplied with stainless steel strap x 4,
M8-16 screw x 4, washer x 4
81-D7H05-WBM
Wall Box Mount
Dimensions (L x W x D):
270 x 166 x 95 mm / 10.6 x 6.5 x 3.7 in
Weight: 2.2 kg / 4.84 lb
Supplied with M8-16 screw x 4, washer x 4, spring washer x 4
Power Box can be set inside the wall box.
81-DH801-S01
5.8" Smoke Cover
Diameter: 145 mm / 5.7 in
81-P1030-001
Power Box
(Input: 110 -115V AC)
Dimensions (L x W):
185.5 x 147 mm / 7.3 x 5.8 in
Weight: 2.6 kg / 5.8 lb
Output: 24VAC 72VA
81-P2030-001
Power Box
(Input: 220 -230V AC)
Dimensions (L x W):
185.5 x 147 mm / 7.3 x 5.8 in
Weight: 2.6 kg / 5.8 lb
Output: 24VAC 72VA
