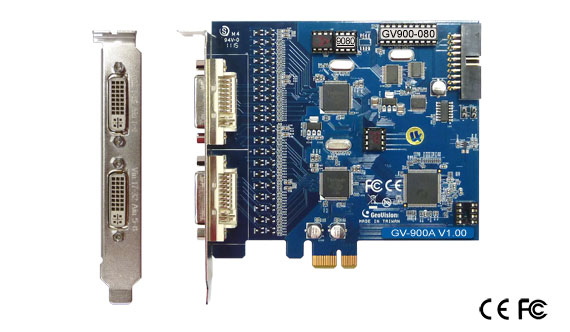

| GV-900A卡提供多达32路视频和8声道音频，录制高达240/200帧（NTSC / PAL制式）的带有H.264软件压缩。 |
 规格 - 视频
|
|
GV-900A |
GV-900A x 2 |
|
接口 |
PCI-E (x1) |
PCI-E (x1) x 2 |
|
输入类型 |
DVI |
|
视频输入 |
8, 16, 32 Cams |
16, 24, 32 Cams |
|
音频输入 |
8 Channels |
16 Channels |
|
录影速率
|
CIF |
NTSC |
8-port: 240 fps
32-port: 240 fps |
8+8 port: 480 fps
16+16 port: 480 fps |
PAL |
8-port: 200 fps
32-port: 200 fps
|
8+8 port: 400 fps
16+16 port: 400 fps |
D1 |
NTSC |
8-port: 240 fps
32-port: 120 fps
|
8+8 port: 480 fps
16+16 port: 240 fps |
PAL |
8-port: 200 fps
32-port: 100 fps
|
8+8 port: 400 fps
16+16 port: 200 fps |
|
显示速率 |
CIF |
NTSC |
8-port: 240 fps
32-port: 240 fps |
8+8 port: 480 fps
16+16 port: 480 fps |
PAL |
8-port: 200 fps
32-port: 200 fps
|
8+8 port: 400 fps
16+16 port: 400 fps |
D1 |
NTSC |
8-port: 240 fps
32-port: 120 fps
|
8+8 port: 480 fps
16+16 port: 240 fps |
PAL |
8-port: 200 fps
32-port: 100 fps
|
8+8 port: 400 fps
16+16 port: 200 fps |
|
视频分辨率 |
NTSC |
704 x 480, 704 x 480 De-interlace, 640 x 480, 640 x 480 De-interlace,
352 x 240, 320 x 240 |
| PAL |
704 x 576, 704 x 576 De-interlace, 640 x 480, 640 x 480 De-interlace,
352 x 288, 320 x 240 |
|
视频压缩格式 |
Geo MPEG4, Geo H264 |
|
音频压缩格式 |
(16 kHz / 16 bit) |
GV-NET/IO Card Support |
Yes |
|
尺寸
(W x H) |
|
功能指南 |
GV-900A |
注意:
1.
GV-900A 目前没有与威盛系列和ATI系列芯片组的主板兼容。
2. 16-port has the same recording rate and display rate as 32-port.
3. 规格变动恕不另行通知 |
一张卡最低系统配置 |
|
|
|
|
|
|
|
CPU |
Pentium 4, 3.0 GHz with Dual Core |
|
RAM |
2 x 1 GB Dual Channels |
|
HDD |
160 GB |
|
|
|
|
|
|
两张卡最低系统配置 |
|
|
|
|
|
|
|
CPU |
Core i5-750, 2.66 GHz |
|
RAM |
2 x 1 GB Dual Channels |
|
HDD |
500 GB |
|
|
|
|
|
|
Accessories |
4 cam video cable |
8 cam video cable |
16 cam video cable |
 |
 |
 |
|
| Connecting One GV-900A Card |
|
|
| |
| Connecting Two GV-900A Cards |
|
| |
| Connecting GV-Net I/O Card with One GV-900A Card |
|
| |
| Connecting GV-Net I/O Card with Two GV-900A Cards |
|
|
| 注意: 规格变动恕不另行通知。 |
|
|
|
|
