Datasheet
The GV-IB25 / GV-IB65 / GV-IB85 Infrared Button detects infrared movement within 3 to 12 cm and allows you to open the door with a wave of hand. The touchless sensor eliminates the need to contact the button and keeps your hands clean when entering or exiting places such as hospitals, restaurants or stores. In addition, the built-in relay function allows you to program the door opening time to enhance security.
Features
  • Activates without pressing the button to prevent spread of diseases.
  • Specially designed to prevent any interference from other infrared.
  • Double color status light and adjustable proximity range.
  • Door opening time can be set as trigger state (0.5~20 sec) or toggle mode output
  • Operating temperature: -10°C ~ +70°C / 14°F ~ 158°F
  • Sealing protection: IP65.
  • Infrared proximity has a total lifespan of 100,000 hours. Relay has a total lifespan of 1,000,000 times.

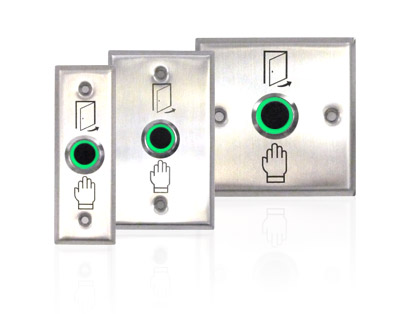

GV-IB25 GV-IB65 GV-IB85
Specifications
Model GV-IB25 (Slim Model) GV-IB65 GV-IB85
Standard US / EU US EU
Power input DC12V ~ DC 24.V (± 10%)
Proximity Range 3 ~ 12 cm / 1.18 ~ 4.72 in (± 25%)
Output Loading 1A, DC30V (Max.)
Output State Trigger state (0.5 ~ 20 sec) or toggle mode
Life Time Infrared sensor: 100,000 hours Relay mechanical lifespan: 1000,000 times
Default Indicator Color Standby Mode: Red; Activated Mode: Green (Indicator colors are adjustable.)
Case Stainless Steel
Power Consumption Maximum current 35mA, DC24V
Operating Temperature -10° C ~ +70° C / 14° F ~ 158° F
Operating Humidity Maximum 85% Rh
Dimensions (L x W x D) 115 x 39 x 30 mm / 4.53 x 1.54 x 1.18 in 115 x 70 x 30 mm / 4.53 x 2.76 x 1.18 in 86 x 86 x 30 mm / 3.4 x 3.4 x 1.18 in
Weight 70 g / 0.15 lb 95 g / 0.21 lb 90 g / 0.20 lb
Installation Guide
Note:
1. Different materials have different reflective rate. The proximity range is obtained using an 18% neutral gray card.
2. Specifications are subject to change without notice.
Packing List
  1. GV-IB25 / GV-IB65 / GV-IB85 Infrared Button x 1
  2. 5-pin Connector x 1
  3. Phillips Screw x 2
  4. Installation Guide x 1
