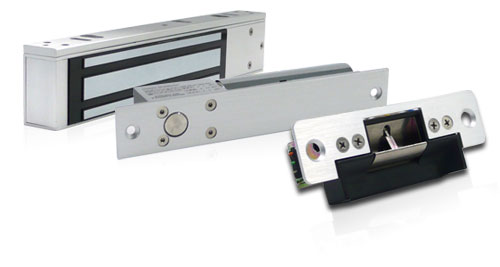

The GV-ML600 is a surface mount electromagnetic lock featured with a built-in voltage spike suppressor. It can be applied for single-leaf or double-leaf doors.

Specifications

Voltage	DC 12V / 24V
Current	500mA at 12V / 250mA at 24V
Holding Force	272.15 kg (600 lb)
Dimensions (L x W x H)	250 x 47.2 x 26.6 mm (9.84" x 1.86" x 1.05")
Armature Plate Dimensions (L x W x H)	185 x 38 x 12.5 mm (7.28" x 1.50" x 0.49")
Weight	2.2 kg (4.85 lb)
Certification	CE, UL
Installation Guide

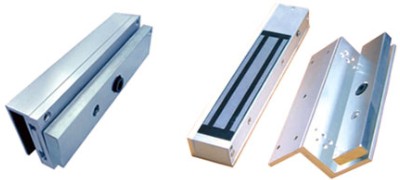

Brackets (Optional)

GV-B600U Brackets	GV-B600LZ Brackets

The GV-EL202B is an electric bolt, featured with a stainless steel faceplate and a built-in voltage spike suppressor. It supports lock sensor and door status sensor functions. The fail-safe electric bolt locks the door when the power is applied, and unlocks the door when the power is removed. It can be applied to single-leaf or double-leaf doors.

Specifications

Voltage	DC 12V or AC 24V
Current	0.9A (start); 0.3A (standby)
Lock Sensor Switch Rating	1A at AC/DC 30V
Door Status Sensor Switch Rating	0.5A at AC/DC 30V (magnetic reed switch)
Auto Relock Jumper	0, 2.5 and 5 seconds (adjustable)
Dimensions (L x W x H)	202 x 35 x 43 mm (7.95" x 1.38" x 1.69")
Weight	0.9 kg (1.98 lb)
Certification	CE, UL

Installation Guide

The GV-EL124S is a fail-secure electric strike. But it is field convertible from fail secure to fail safe. It can be mounted either right or left reversibly on the doorjamb, providing remote release of a locked door.

Specifications

Voltage	DC 12V (default) or DC 24V
Current	260mA at DC 12V or 150mA at DC 24V
Keeper Depth	12.7 mm (0.50")
Temperature Resistance	-30°C ~ 80°C (20 °F ~ 160 °F)
Dimensions (L x W x H)	123.5 x 31.4 x 40.7 mm (4.86" x 1.24" x 1.60")
Weight	400 g (0.88 lb)
Certification	CE

Installation Guide
