控制
水平角度
360°全方位
上下角度
-10° ~ 190°
人工控制速度
0.5° ~ 90°/s
Preset
256
预置点偏差范围
0.225°
预置点调用速度
5° ~ 400°/s
预定程序
8
群组巡弋
4
巡航点
4
隐私遮罩
24
8
24
自动追踪
开/关(旋转和倾斜速度比例缩放比率)
电源关闭后恢复
是
看门功能
预置点, 预定程序, 群组巡弋, 巡航
自动翻转
数字/ 机械 / 关闭
数字慢快门
开 / 关
移动侦测
开 / 关
移动侦测
开 / 关
日/夜: 机械 IR 过滤
开 / 关
图像反转
开 / 关
图像固定
开 / 关
报警输入
4
报警输出
1
报警动作
预置点, 预定程序, 群组巡弋, 巡航
常规
24V AC ± 10%, 1.5A
风扇
打开: 35°C / 95°F
应用
网络存储
GV-NVR, GV-System, GV-Backup Center, GV-Recording Server
3G 移动手机
GV-AView for Android Smartphone,
GV-Eye HD for iPad, GV-Eye for
iPhone and iPod Touch, GV-GView
for Windows PDA, GV-MSView for
Windows Smartphone, GV-SSView
for Symbian Smartphone, 3G-enabled
phone.
实时监看
IE , GV-MultiView
CMS 服务器
GV-Control Center, GV-Center V2, GV-VSM
Click for larger image.
Click for larger image.

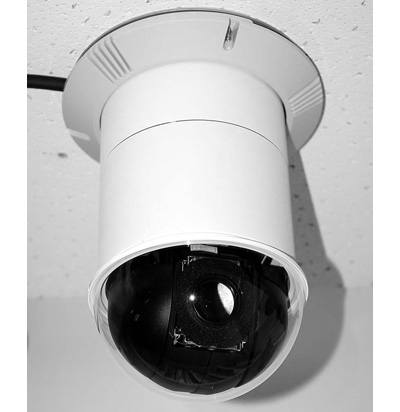

Surface Mount

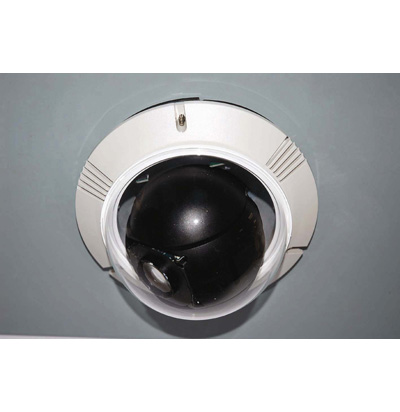

Flush Mount
Straight Tube Mount

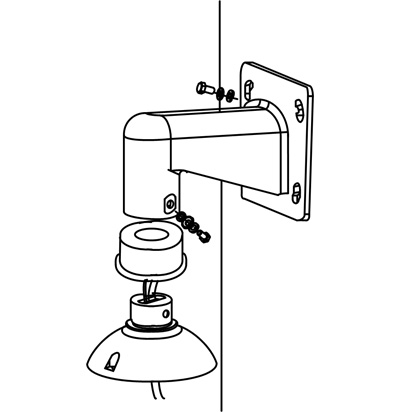

Standard Pendent Mount

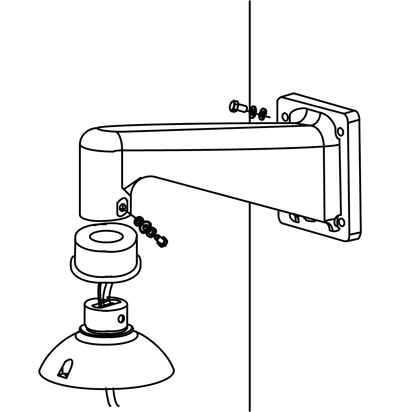

Mini Pendent Mount
Wall Box Mount

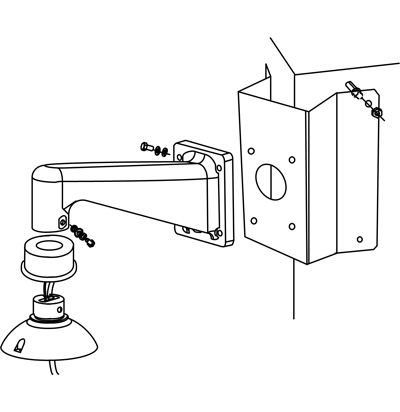

Corner Plate Mount

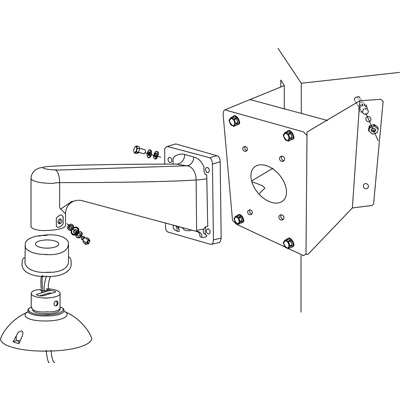

Corner Thin Box and Standard/Min Pendent Mount
Pole Thin Direct Mount

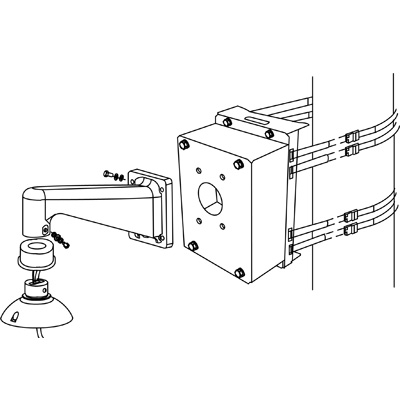

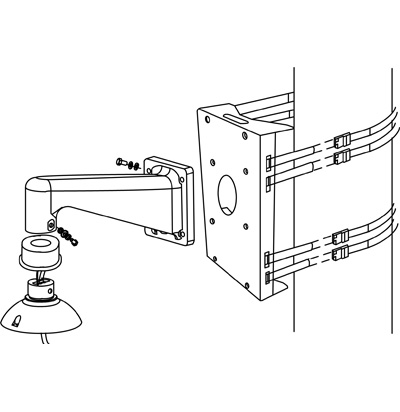

Pole Thin Box Mount
Corner Plate Mount
Pole Thin Direct Mount
Part Number
Number Name
Details
81-D7H03-ST1
Straight Tube
(25 cm)
Height: 250 mm / 9.8 in
Diameter: 50 mm / 2 in
Weight: 1 kg / 2.2 lb
Supplied with rubber washer-8 x 1,
pendent tube washer x 1, spring washer -8 x 1, waterproof rubber x 1, M8-12 screw x 1
81-D7H03-ST2
Straight Tube
(50 cm)
Height: 500 mm / 19.7 in
Diameter: 50 mm / 2 in
Weight: 1.8 kg / 4 lb
Supplied with rubber washer-8 x 1,
pendent tube washer x 1, spring washer -8 x 1, waterproof rubber x 1, M8-12 screw x 1
Dimensions (L x W x D):
184 x 104 x 115.2 mm / 7.24 x 4.09 x 4.54 in
Weight: 0.6 kg (1.2 lb)
Supplied with rubber washer-8 x 1, pendent tube washer x 1, spring washer-8 x 1, M8-12 screw x 1.
Dimensions (L x W x D):
348 x 104 x 138.6 mm / 13.7 x 4.1 x 5.5 in
Weight: 1.5 kg / 3.3 lb
Supplied with rubber washer-8 x 1,
pendent tube washer x 1,
spring washer-8 x 1, M8-12 screw x 1
81-D7H05-CST
Corner Plate Mount
Dimensions (L x W x D):
222 x 204 x 117 mm / 8.7 x 8 x 4.6 in
Weight: 2 kg / 4.4 lb
Supplied with washer-8 x 4,
spring washer x 4, M8-16 screw x 4,
M8 nut x 4
81-D7H05-CTB
Corner Thin Box Mount
Dimensions (L x W x D):
300 x 164 x 222 mm / 11.8 x 6.5 x 8.7 in Weight: 6.7 lb
Supplied with washer x 4, M8-16 screw x 4, spring washer x 4
Power Box can be set inside the thin box.
81-D7H05-PTB
Pole Thin Box Mount
Dimensions (L x W x D):
291 x 136 x 242 mm / 11.5 x 5.4 x 9.5 in
Weight: 3.1 kg / 6.9 lb
Supplied with M8-16 screw x 4, washer x 4, spring washer x 4, stainless steel straps x 4
Power Box can be set inside the thin box.
81-D7H05-PTD
Pole Thin Direct Mount
Dimensions (L x W x D):
232 x 136 x 60 mm / 9.1 x 5.4 x 2.4 in
Diameter: 112~114 mm / 4.4 ~ 5.5 in
Weight: 0.7 kg / 1.6 lb
Supplied with stainless steel strap x 4,
M8-16 screw x 4, washer x 4
81-D7H05-WBM
Wall Box Mount
Dimensions (L x W x D):
270 x 166 x 95 mm / 10.6 x 6.5 x 3.7 in
Weight: 2.2 kg / 4.84 lb
Supplied with M8-16 screw x 4, washer x 4, spring washer x 4
Power Box can be set inside the wall box.
81-D7H05-MK2
Indoor Mount Kit
Height: 74 mm / 2.9 in
Diameter: 140 mm / 5.5 in
Weight: 0.3 kg / 0.7 lb
Supplied with Waterproof Rubber,
Hexagon Key, Lock Screw Plate,
M5-8 screw x 1, M5-8 security screw x 1,
M3-6 screw x 1
81-D7H06-HCM
Hard Ceiling Mount
Height: 21.4 mm / 0.84 in
Diameter of the three holes: 4.5 mm / 0.17 in
Diameter of the bracket: 158 mm / 6.22 in
Supplied with Fixing Plate and Red Sticker
81-D7H06-TBC
T-Bar Ceiling Mount
Height: 160 mm / 6.3 in
Diameter: 180 mm / 7.1 in
Weight: 0.5 kg / 1.1 lb
规格
