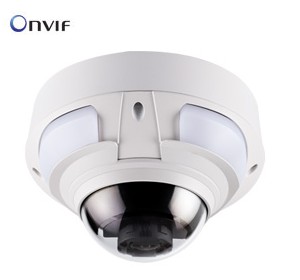

GV-VD5711 5MP H.265 2x Zoom Low Lux WDR IR Vandal Proof IP Dome

GV-VD5711是一个室外摄像机，IK10+防暴等级和IP67防护等级. 配备机械镜头，使用户可通过网页远程调整摄像机焦距以及聚焦。在夜间工作时，可达到最大30m的红外距离。此摄像机支持H265视频编码，在低带宽情况下，可达到更高压缩比率，同时保持高质量的画质。

特征
尺寸
安装
镜头
附件
包装清单

1/1.8" 超低照度逐行扫描CMOS
双码流H265. H.264和MJPEG
2592 x 1944分辨率高达30帧
防暴等级（IK10+）
防护等级（IP67）
P-iris镜头用于自动光圈控制
可远程调节焦点/缩放
三轴机械调节（水平/垂直/旋转）
日夜功能（红外滤波片）
高功率红外LED灯
智能红外
红外照射最大距离30米
外接麦克风
双向语音
一组传感器输入及一组传感器输出
支持电视输出
支持Micro SD / SDHC存储卡插槽
通过GV-Edge Recording Manager分配录像
DC 12V / AC 24V / PoE+ (IEEE 802.3at)
宽动态
3D数字降噪
智能码流
除雾
移动侦测
入侵报警
隐私遮罩
IP 地址过滤
支持iPhone, iPad, Android 和 3GPP
网页界面支持31国语言
ONVIF(Profile s)标准
* 对阿根廷没有SD / SDHC存储卡插槽和本地存储功能
* 智能码流需要GV-NVR/DVR V8700版本或GV-VMS V1610版本

遮挡报警

遮挡	焦点变化	场景变化

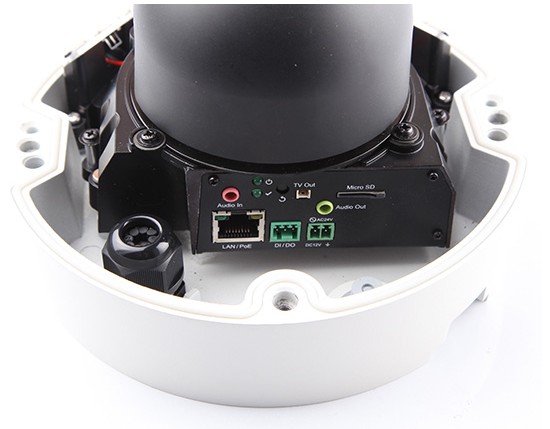

后面板

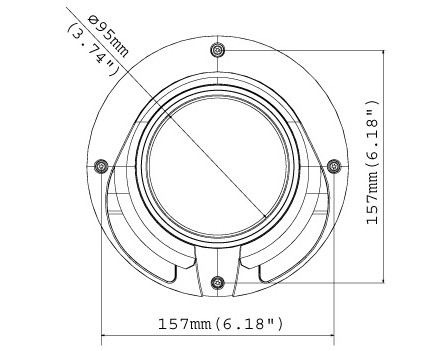

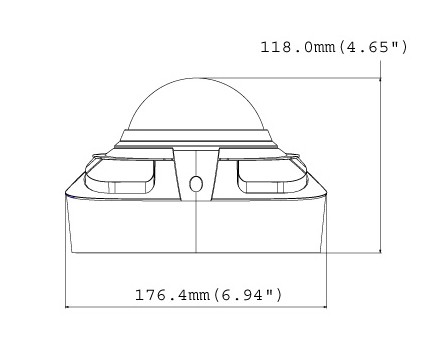

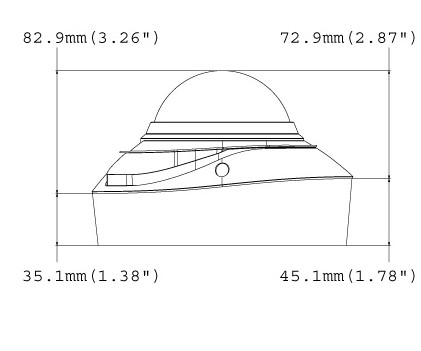

尺寸

点击大图 .

标准

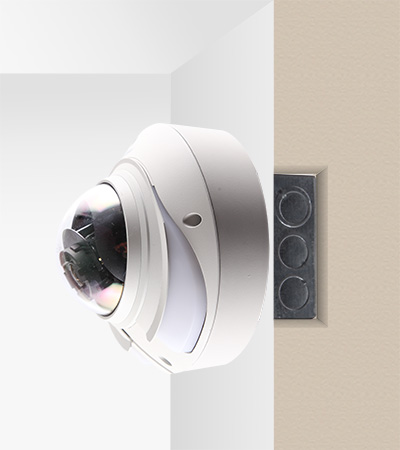

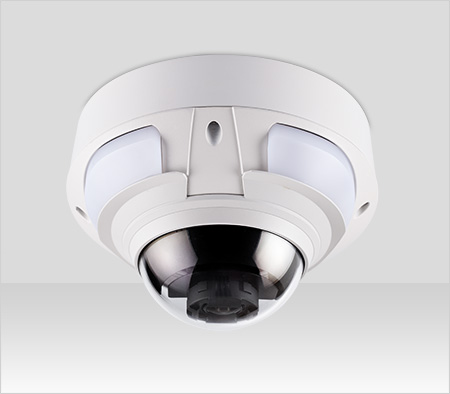

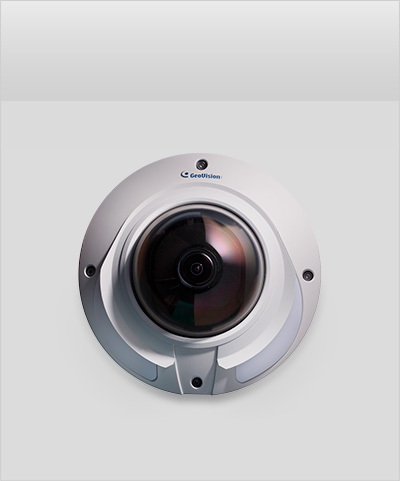

	Ceiling Mount	Power Box Mount	Conduit Converter Mount
可选

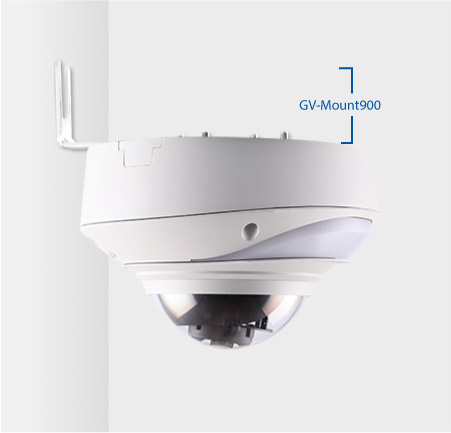

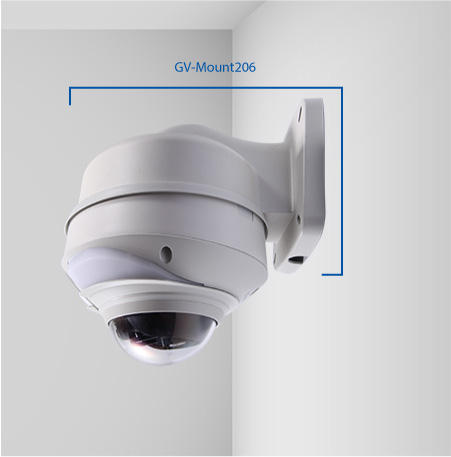

	L-Shaped Wall Mount	Wall Box Mount	Wall Mount Bracket	Wall Pendant Mount	Straight Tube Mount

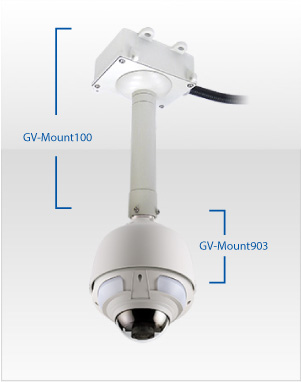

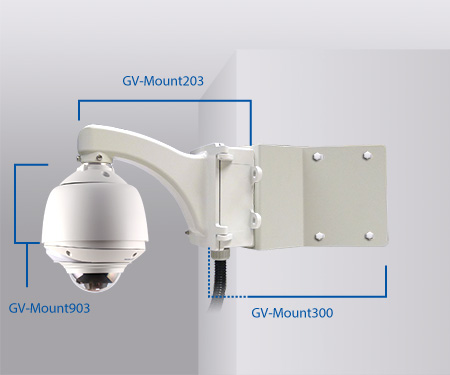

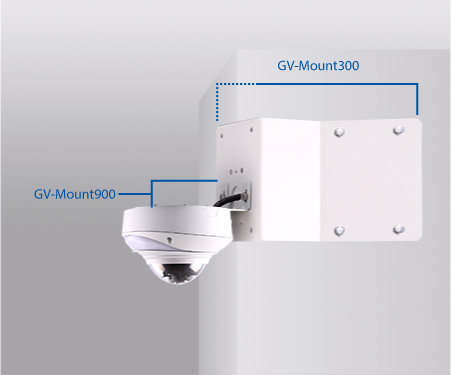

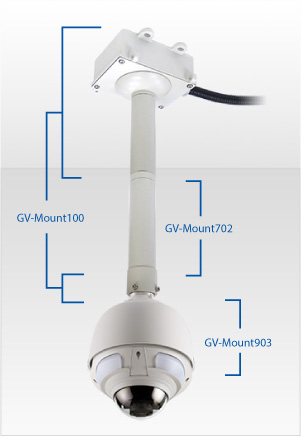

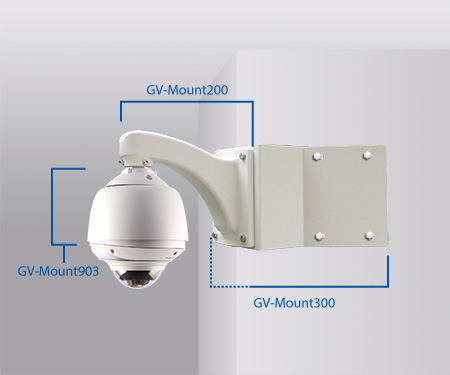

	Straight Tube Box Mount	In-Ceiling Mount	Convex Corner Mount with Pendant Tube	Convex Corner Mount with Wall Bracket	Convex Corner Box Mount

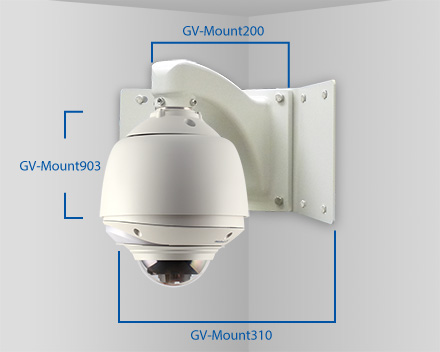

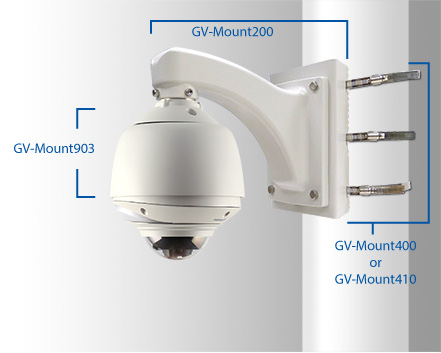

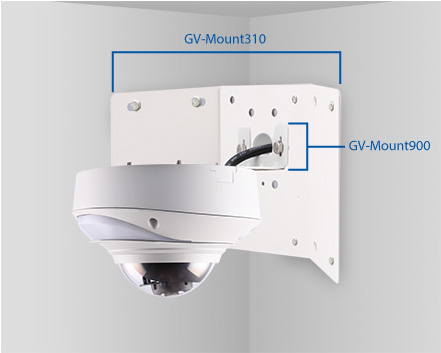

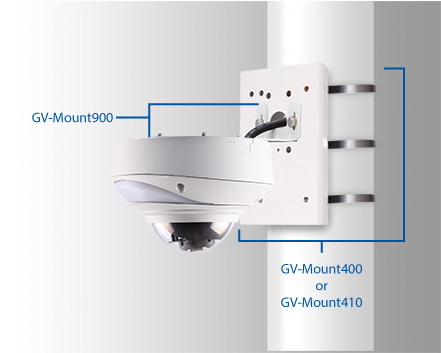

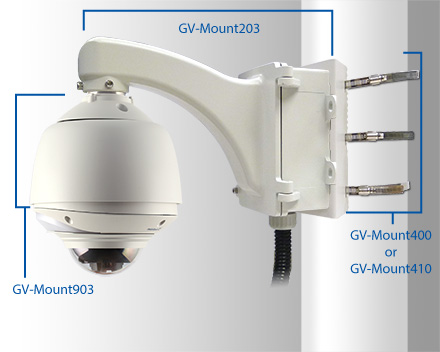

	Concave Corner Mount with Pendant Tube	Concave Corner Mount with Wall Bracket	Pole Mount with Pendant Tube	Pole Mount with Wall Bracket	Pole Box Mount

	Weatherproof Shield

Click for larger image

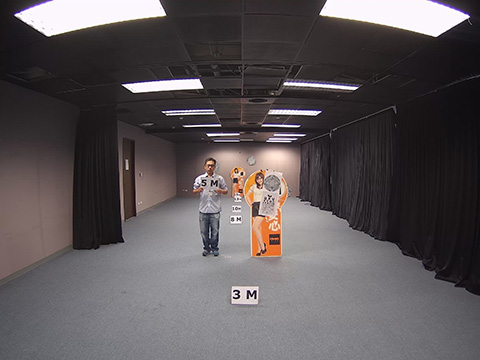

P-Iris 4 ~ 8 mm

For required accessories of each installation, click the corresponding illustration under the Mounts section.

Model No.	Name		Details
GV-Mount100	Straight Tube and Junction Box Kit		Dimensions: Weight:

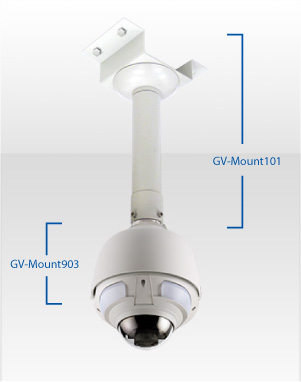

GV-Mount101	Straight Tube Kit		Dimensions: Weight:

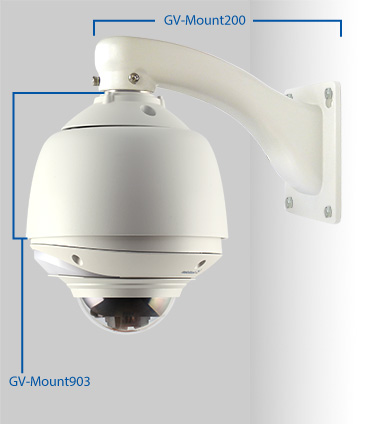

GV-Mount200	Wall Pendant Tube		Dimensions: Weight:
GV-Mount203	Wall Pendant Tube and Junction Box Kit		Dimensions: Weight:
GV-Mount300	Convex Corner Adapter Kit		Dimensions: Weight:
GV-Mount310	Concave Corner Adapter Kit		Dimensions: Weight:
GV-Mount400	Pole Mount Bracket Kit ()		Bracket: Weight: Steel Strap Diameter:
GV-Mount410	Pole Mount Bracket Kit ()		Bracket: Weight: Steel Strap Diameter:

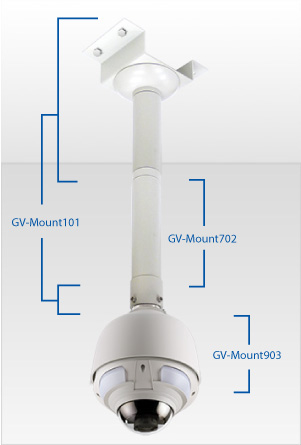

GV-Mount702	Extension Tube		Four options are available. Dimensions: Weight:
GV-Mount900	Wall Mount Bracket		Dimensions: Weight:
GV-Mount903	GV-FE / GV-VD Dome Housing		Dimensions: Weight:

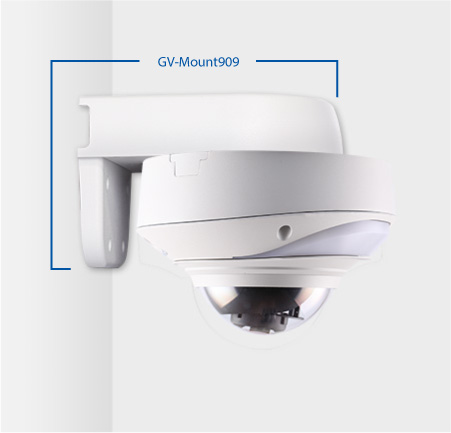

GV-Mount909	Wall Mount Bracket		Dimensions:154 x 108 x 50 mm (6.1 x 4.3 x 2") Weight:240 g (0.53 lb)

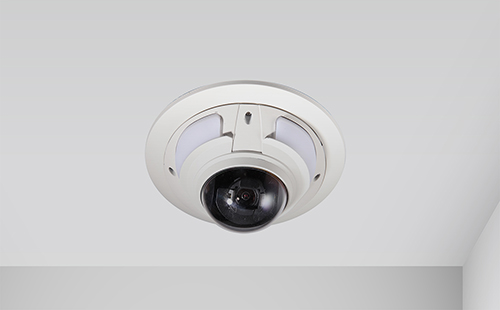

GV-Mount914	In-Ceiling Mount		Dimensions:Φ 222 x 86 mm (8.74 x 3.39") Weight:705 (1.55 lb)

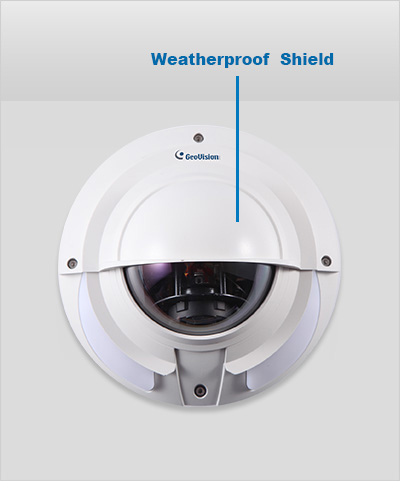

Weatherproof Shield			The weatherproof shield protects the camera from rain and snow.
GV-Relay V2			The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
GV-POE Switch		The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter		Power adapters are available in 6 regions: Argentina, Australia, Brazil, Europe, U.K and U.S. * This item does not include a power cord.

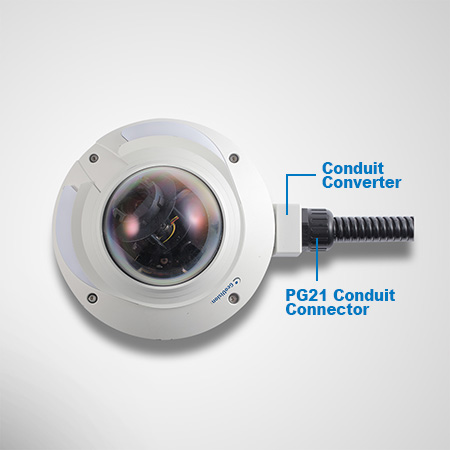

Metal PG21 Conduit Connector			The metal PG21 conduit connector allows you to run the wires through a 3/4" conduit pipe.
