GeoVision Inc. GV-FD1510 - 1.3MP H.264 WDR IR Fixed IP Dome - Intelligent IR, PoE, WDR, 3-axis, ONVIF Profile S

天花板上安装

天花板内安装

网络摄像机

监控主机

视频管理软件

视频采集卡

门禁控制系统

智能手机/PAD/平板电脑

数字广告投放系统

PoE交换机

HD-SDI

周边附件

Datasheet

介绍

GV-FD1510 是一款安装方便的室内型摄像机，三轴设计使得摄像机的安装调试非常灵活。配备的超低照度CMOS传感器可以在黑暗的环境下为您提供彩色的监控画面，配置机械变焦镜头，使得用户可以在它的网页界面上远程调焦。可以安装在各种类型的地点比如：吊顶、墙面或者柱子上，摄像机配件可选。

特征
尺寸
安装
镜头
附件
包装清单

1/3" 超低照度逐行扫描 CMOS
最低照度0.01lux
双码流H.264和MJPEG
1280 x 1024分辨率高达30帧
三轴机械调节（水平/垂直/旋转）
可远程调焦（配备机械变焦镜头）
智能红外
红外照射最远30米
双向语音
一组传感器输入及一组传感器输出
支持电视输出
支持Micro SD / SDHC存储卡插槽
DC 12V / AC 24V / PoE
宽动态
3D数字降噪
除雾
移动侦测
入侵报警
隐私遮罩
日夜功能（移动式红外滤波片）
IP 地址过滤
支持iPhone, iPad, Android 和 3GPP
网页界面支持31国语言
ONVIF(Profile s)标准

* 阿根廷不支持SD/SDHC和本地存储

遮挡报警

遮挡	焦点变化	场景变化

后面板

尺寸

点击大图 .

点击大图 .

标准

	天花板上安装	天花板内安装	壁装
可选

	L-Shaped Wall Mount	Wall Box Mount	Wall Mount Bracket	Wall Pendant Mount	Straight Tube Mount

	Straight Tube Box Mount	Convex Corner Mount	Convex Corner Box Mount	Concave Corner Mount	Pole Mount

	Pole Box Mount	Power Box Mount

点击大图

For required accessories of each installation, click the corresponding illustration under the Mounts section.

Model No.	Name	Details
GV-Mount100	Straight Tube and Junction Box Kit		Dimensions: Weight:
GV-Mount101	Straight Tube Kit		Dimensions: Weight:
GV-Mount200	Wall Pendant Tube		Dimensions: Weight:
GV-Mount203	Wall Pendant Tube and Junction Box Kit		Dimensions: Weight:
GV-Mount300	Convex Corner Adapter Kit		Dimensions: Weight:
GV-Mount310	Concave Corner Adapter Kit		Dimensions: Weight:
GV-Mount400	Pole Mount Bracket Kit ()		Bracket: Weight: Steel Strap Diameter:
GV-Mount410	Pole Mount Bracket Kit ()		Bracket: Weight: Steel Strap Diameter:
GV-Mount702	Extension Tube		Four options are available. Dimensions: Weight:

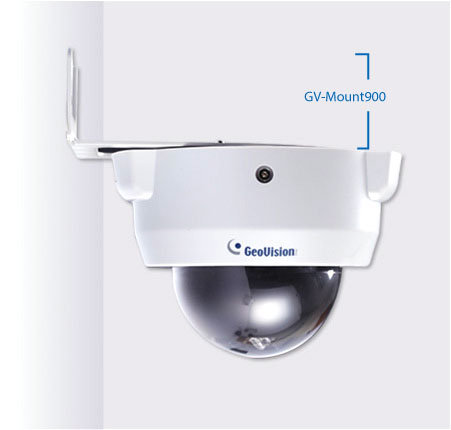

GV-Mount900	Wall Mount Bracket		Dimensions: Weight:
GV-Mount902	GV-FD Series Dome Housing		Dimensions: Weight:

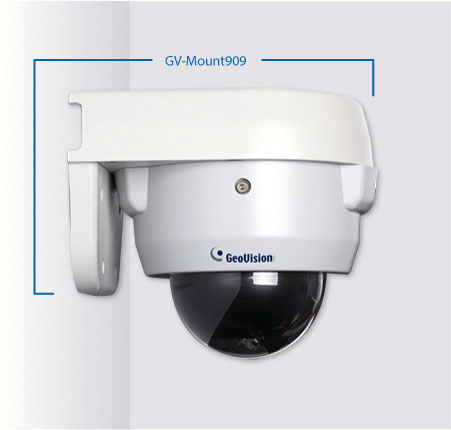

GV-Mount909	Wall Mount Bracket		Dimensions: Weight:

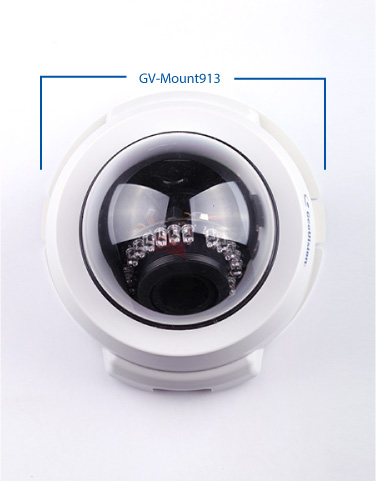

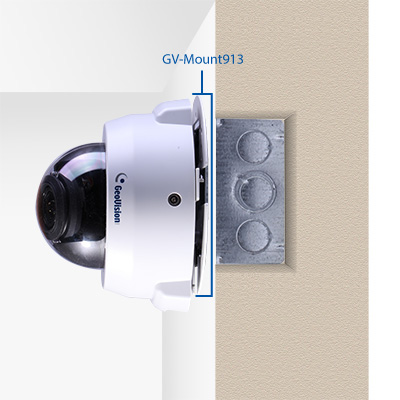

GV-Mount913	Power Box Mount Bracket		Dimensions: Weight:
	Smoked Cover		Dimensions: ø 103.7 x 55 mm (4.08 x 2.16") Weight: 30g (0.07 lbs) Vandal Resistance: IK7
GV-PA191	Power over Ethernet (PoE) Adapter		The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-Relay V2			The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
GV-POE Switch		The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter		Power adapters are available in 5 regions: Australia, Brazil, Europe, U.K and U.S.
