GeoVision Inc. GV-EFD5101 Series 5MP H.264 Low Lux WDR IR Fixed IP Dome

网络摄像机

监控主机

视频管理软件

视频采集卡

门禁控制系统

智能手机/PAD/平板电脑

数字广告投放系统

PoE交换机

HD-SDI

周边附件

GV-EFD4700 4MP H.265 Super Low Lux WDR Pro IR Mini Fixed IP Dome

1/3" 超低照度逐行扫描 CMOS
三码流H.265和H.264和MJPEG
2592×1520时每秒20帧
百万像素镜头
智能红外
日/ 夜功能
P-Iris用于光圈自动控制
宽动态 WDR Pro
2轴可调
DC 12V/POE供电
双向语音
3D降噪
专业宽动态
除雾
移动侦测
遮挡报警
文字叠加
隐私遮罩
IP地址过滤
支持的iPhone，iPad，Android和3GPP
网页界面支持31种语言
支持ONVIF协议标准
更多存储选择--NAS

经济适用型固定半球是为室内使用而设计的。它配备有红外灯，低照度以及红外滤光片便于日夜监看。可2轴转动调节（水平、垂直），从而可提供经济适用的监控解决方案。

启用遮挡报警

遮挡	焦点变化	场景变化

概述
安装
镜头
附件
包装清单

背板

点击大图

尺寸

点击大图 .

点击大图

标准

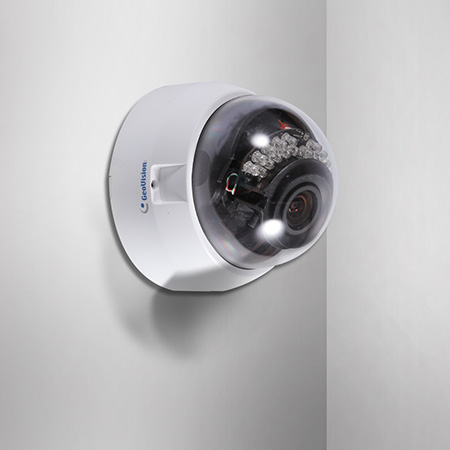

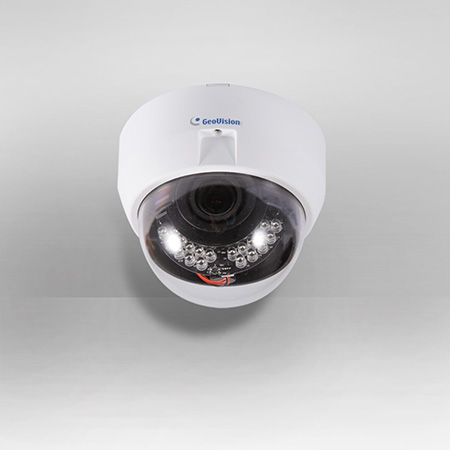

	Ceiling Mount	Wall-Surface Mount
可选

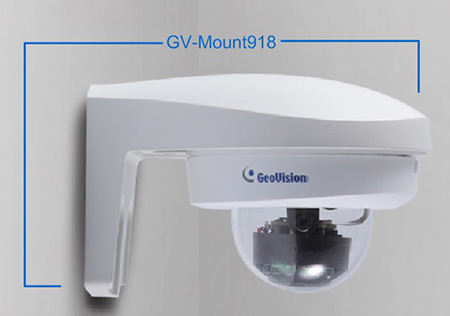

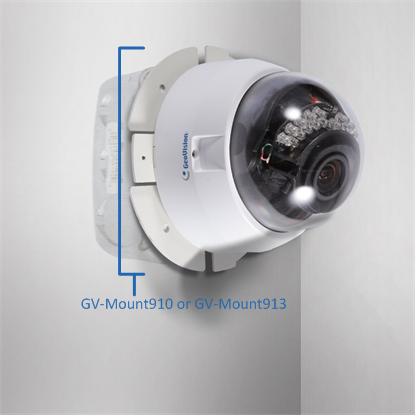

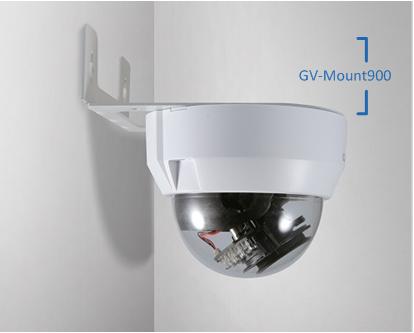

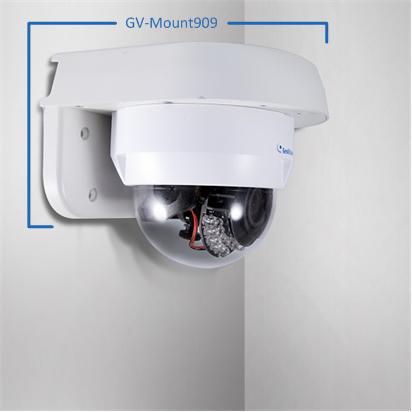

	L-Shaped Wall Mount	Wall Box Mount	Power Box Mount

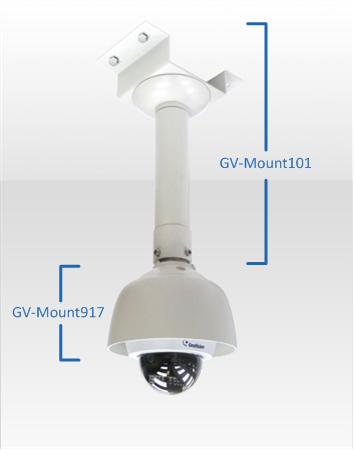

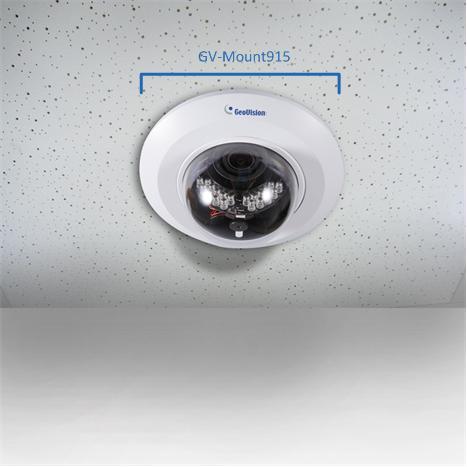

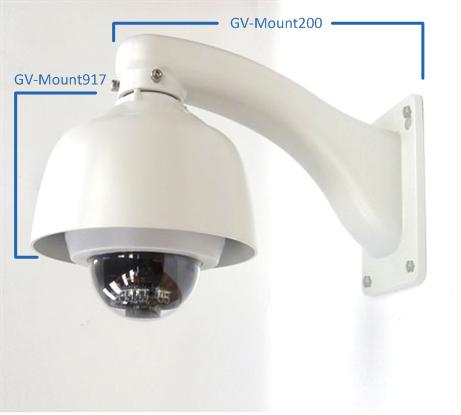

	In-Ceiling Mount	Wall Pendant Mount	Straight Tube Mount

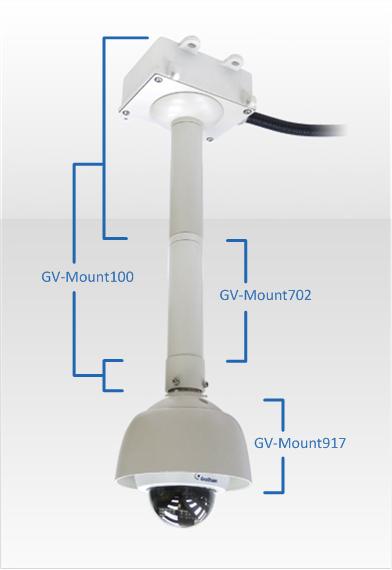

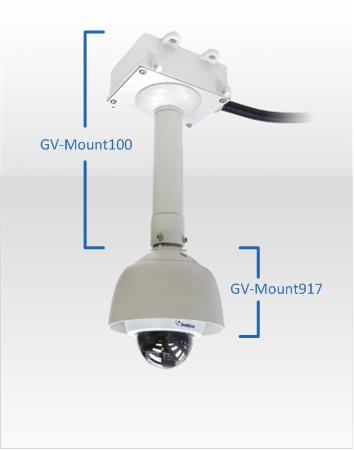

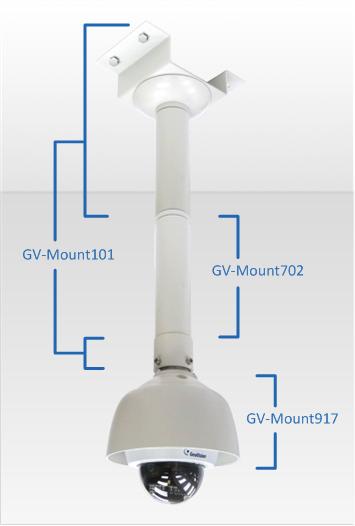

	Straight Tube Mount with Extension Tube	Straight Tube Box Mount	Straight Tube Box Mount with Extension Tube

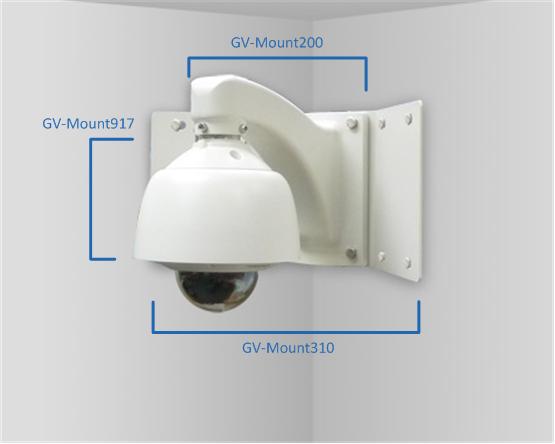

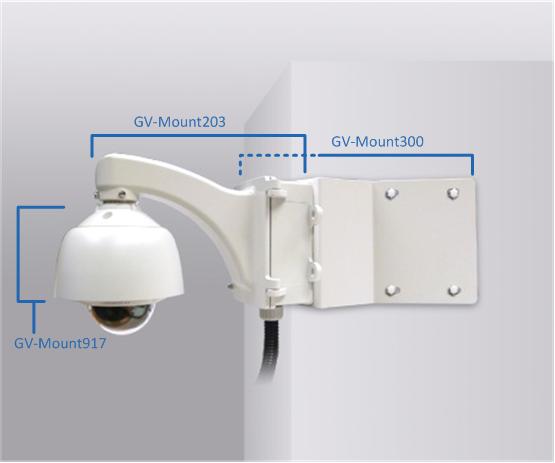

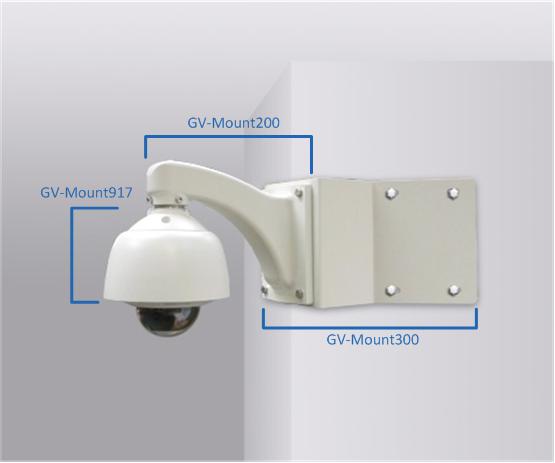

	Convex Corner Mount	Convex Corner Box Mount	Concave Corner Mount

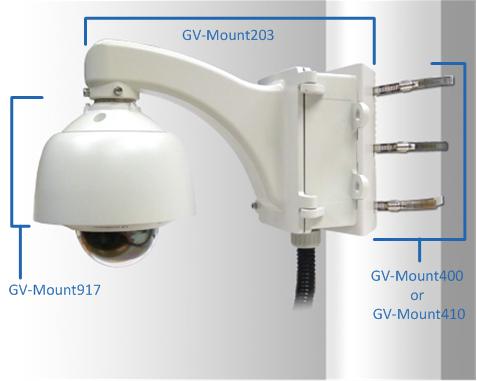

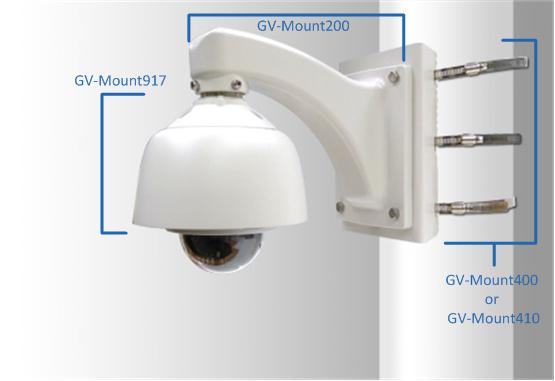

	Pole Mount	Pole Box Mount

点击大图
P-Iirs 3-9mm

3 mm 9 mm

For required accessories of each installation, click the corresponding illustration under the Mounts section.

Model No.	Name		Details
GV-Mount100	Straight Tube and Junction Box Kit		Dimensions: Weight:
GV-Mount101	Straight Tube Kit		Dimensions: Weight:
GV-Mount200	Wall Pendant Tube		Dimensions: 225 x 140 x 250 mm (8.9 x 5.5 x 9.8") Weight: 900 g (1.98 lb)
GV-Mount203	Wall Pendant Tube and Junction Box Kit		Dimensions: Weight:
GV-Mount300	Convex Corner Adapter Kit		Dimensions: Weight:
GV-Mount310	Concave Corner Adapter Kit		Dimensions: Weight:
GV-Mount400	Pole Mount Bracket Kit ( )		Dimensions Bracket: Weight: Steel Strap:
GV-Mount410	Pole Mount Bracket Kit ( )		Dimensions Bracket: Weight: Steel Strap:
GV-Mount702	Extension Tube		Four options are available. Dimensions: Weight:
GV-Mount900	Wall Mount Bracket		Dimensions: 154 x 108 x 50 mm (6.1 x 4.3 x 2") Weight: 240 g (0.53 lb)
GV-Mount909	Wall Mount Bracket		Dimensions: 170 x 150 x 110 mm (6.7 x 5.9 x 4.3") Weight: 0.61 kg (1.34 lb)
GV-Mount910	Power Box Mount Bracket		Dimensions: 112 x 98 x 7.5 mm (4.4 x 3.9 x 0.3") Weight: 105 g (0.23 lb)
GV-Mount913	Power Box Mount Bracket		Dimensions: φ 146 x 7.5 mm (φ 5.7 x 0.3") Weight: 180 g (0.4 lb)
GV-Mount915	In-Ceiling Mounting Kit for GV-EFD2101 / 3101		Dimensions: φ172.5 x 63.8 mm (φ 7.04 x 2.5") Weight: 424 g (0.93 lb)
GV-Mount917	GV-EFD2101 / 3101 Dome Housing		Dimensions: φ186 x 97.5 mm (φ 7.3 x 3.8") Weight: 948 g (2.09 lb)
GV-PA191	Power over Ethernet (PoE) Adapter		The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch		The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter		Power adapters are available in 4 regions: U.S.A., Australia, U.K and Europe.
