GV-Hot Swap DVR V5 - 4U, 8 / 4-Bay GV-Hot Swap DVR V5 - 3U, 16 / 8-Bay
GV-Hot Swap DVR V5 - 4U, 8 / 4-Bay GV-Hot Swap DVR V5 - 3U, 16 / 8-Bay
* Listed Product including appearances and images are samples and for reference only. Features and specifications are subject to change without notice.
  • Introduction
  • Features
  • Specifications
  • Overview
  • Options
  • Packing List

The GV-Hot Swap DVR System V5 features a powerful data storage capacity. It comes with a selection of 4U (20 / 8 / 4-bay) or 3U (16 / 8-bay) and hot-swappable SATA mobile racks. Depending on HDD size, the GV-Hot Swap DVR System V5 can store more than 40 terabytes of recorded data. Support for hot-swapping makes data storage and management more convenient.


GeoVision Surveillance System empowers the GV-Hot Swap DVR System V5 with a maximum of 32 audio and video channels, and a recording rate of up to 960 FPS (NTSC) / 800 FPS (PAL). Its networking capability makes remote access and control of the system possible. Additionally, its compatibility with other GeoVision accessories can cater to any kind of needs or budgets.
Powered by 2nd Generation Intel® Core™ i7 Processor
64-bit Windows Embedded Standard 7
Support GPU Decoding
Support 32-channel GV-DVR
Dual monitor display
Maximum storage capacity of more than 40 terabytes
Hot-swap status LED panel
Dual Gigabit LAN ports
4U (20 / 8 / 4-bay) or 3U (16 / 8-bay) hot-swap SATA HDDs for data storage
Built-in 4 inputs and 4 outputs
Extreme performance for GV-DVR operation
Recovery DVD in case of failure
RAID 0 / 1 / 5 / 6 data protection (optional)*
Compatible with full selections of GeoVision accessories
* Only for 4U (8 / 4-bay) and 3U (8-bay) models

AVAILABLE MODELS
GV-5016H V5
GV-1480H V5
GV-1240H V5
GV-1120H V5
GV-900H V5
GV-800H V5
System
CPU 2nd Generation Intel® Core™ i7 Processor
RAM 4 GB Dual Channels
OS 64-bit Windows Embedded Standard 7
DirectX 9.0c
Connector Ethernet RJ-45, 10 / 100 / 1000 Mbps x 2
VGA Output DB-15 VGA Monitor Output, DVI-D Output (DVI-D signal Only), or HDMI Output
USB 2.0 Front: 2 ports, Rear: 6 ports
USB 3.0 Rear: 2 ports
DVD (±) RW 5.25" -
Slim 8X
Fan 12 cm (4 3/4") 3 units
8 cm (3 1/8") 2 units
Power 1000 W, 90-264 V, 47-63 Hz

Model GV-5016H V5 GV-1480H V5 GV-1240H V5 GV-1120H V5 GV-900H V5 GV-800H V5
Video and Audio
Video Standard NTSC, PAL
Video Input 16 / 32 channels
Video Input Level 0.5 ~ 1.5 Vp-p (± 10 %) composite, 75 惟
Audio Input 16 / 32 channels 8 / 16 channels 4 / 8 channels
Audio Input Level 0.5 ~ 1.5 Vp-p (± 10 %) composite
TV Output N/A 1.0 Vp-p composite N/A
Video Loop Output (Optional) N/A 16 / 32 channels N/A
Video Compression Format HW: H.264
SW: Geo MPEG4, Geo H.264 		Geo MPEG4, Geo H.264
Audio Compression Format (16 kHz / 16 bit)
Display Rate (Max) NTSC 480 / 960 FPS 240 / 480 FPS 120 / 240 FPS
PAL 400 / 800 FPS 200 / 400 FPS 100 / 200 FPS
Recording Rate (Max) NTSC H/W: 480 / 960 (D1) SW: 480 / 960 (CIF) SW: 240 / 480 (CIF) SW: 120 / 240 (CIF) SW: 240 / 480 (CIF) SW: 120 / 240 (CIF)
PAL H/W: 400 / 960 (D1) SW: 400 / 800 (CIF) SW: 200 / 400 (CIF) SW: 100 / 200 (CIF) SW: 200 / 400 (CIF) SW: 100 / 200 (CIF)
Video Resolution NTSC HW: 704 x 480
SW: 352 x 240		 320 x 240 / 352 x 240
640 x 480 / 640 x 480 De-interlace
704 x 480 / 704 x 480 De-interlace
PAL HW: 704 x 576
SW: 352 x 288 		320 x 240 / 352 x 288
640 x 480 / 640 x 480 De-interlace
704 x 576 / 704 x 576 De-interlace
Camera Name Max. 32 characters
Screen Split Control 1x1 / 2x2 / 1+5 / 1+7 / 3x3 / 2+8 / 1+12 / 1+16 / 4x4 / 5x5 / 6x6
Screen Rotate Control 1 ~ 10 sec.
Image Control Contrast / Brightness / Saturation / Hue
Recording Mode Round the Clock / Motion Detection / Sensor Detection / Pre & Post Recording / Schedule Recording
Schedule 96 groups per day by 15 min.
Instant Playback 10 sec. / 30 sec. / 1 min. / 5 min.
Pre Recording 1~ 90 sec. (1 FPS)
Watermark Support
Searching and Playback
Search Method Date / Time
Date / Time / Event Search Selectable on the tree list and calendar
Log Search Through the log data to find the video event / time
Backup Type DVD+R (DL) / DVD-R (DL) / DVD+R / DVD+RW / DVD-R / DVD-RW / CD-R / CD-RW
Remote Client Software
Monitoring Environment WebCam / Twin Server / CenterV2 / VSM / Control Center / Remote View / IP Multicast / GV-AView for Android Smartphone, GV-Eye HD for iPad, GV-Eye for iPhone and iPod Touch, GV-GView for Windows PDA, GV-MSView for Windows Smartphone, GV-SSView for Symbian Smartphone, 3G-enabled phone
WebCam Live View Max. 32 channels transmission
(Max. 200 channels accessible)
Remote Search WebCam's Remote Playback
System Monitoring and Recovery
Power Restoration Power restored after AC power loss
Monitoring Two independent Watchdogs
(Hardware Watchdog + Software Watchdog)
Recovery DVD Automatic system rebuild
Alarm
Sensor Input   Standard 4 inputs
GV-IO 12-In Card (Optional) 12 inputs
GV-IO Box 16 Ports (Optional) 16 inputs
GV-IO Box 8 Ports (Optional) 8 inputs
GV-IO Box 4 Ports (Optional) 4 inputs
Alarm Output Standard 4 outputs
GV-IO 12-Out Card (Optional) 12 outputs
GV-IO Box 16 Ports (Optional) 16 outputs
GV-IO Box 8 Ports (Optional) 8 outputs
GV-IO Box 4 Ports (Optional) 4 outputs
Peripheral Devices
Audio Input RCA 8 / 16 / 32 ports
Audio Microphone In Mini stereo jack
Audio Output Mini stereo jack
TV Output RCA (Note 1)
RS±485 for PTZ Control 2-pin terminal (Note 2)
Networking
Type TCP/ IP, LAN, WAN, Internet, Modem Dial-up, Modem-to-Modem, ISDN
Environment
Operating Temp. 0 ~ 45 °C / 32 ~ 113 °F
Humidity 0 ~ 80% RH (non-condensing)
Language
Type Arabic / Bulgarian / Czech / Danish / Dutch / English / Finland / French / German / Greek / Hebrew / Hungarian / Italian / Japanese / Lithuanian / Norwegian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Sweden / Thai / Traditional Chinese / Turkish
Physical
Color Black
Dimensions (W x H x D) 483 x 178 x 660.4 mm / 19 x 7 x 26 in
Net Weight 24 kg / 52.8 lb (± 1 kg / 2.20 lb)
Note:
1. RCA TV output is only available for GV-1480H / GV-1240H / GV-1120H V5 models.
2. RS±485 for PTZ Control is only functional for GV-1480H / GV-1240H / GV-1120H / GV-900H / GV-800H V5 models.
3. All specifications are subject to change without notice.

Hard Disk Requirements
The total of recording frame rates that you can assign to a single hard disk is listed as below:
Analog Cameras / SW Compression
Video resolution MPEG4
NTSC PAL
CIF 480 fps 400 fps
VGA / D1 240 fps 200 fps
Turbo VGA 416 fps 400 fps
Turbo D1 352 fps 320 fps

Analog Cameras / HW Compression
Video resolution H.264
NTSC PAL
D1 240 fps 200 fps

Note: The above data was determined using the bit rate listed above and hard disks with average R/W above 80 MB/s.
Front View
Rear View - GV-5016H V5 (32 CH)
Rear View - GV-5016H V5 (16 CH)
Rear View - GV-1480H / GV-1240H / GV-1120H V5 (32 CH)

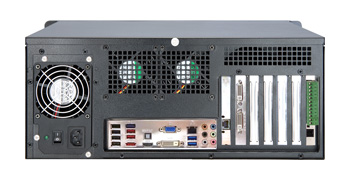

Rear View - GV-1480H / GV-1240H / GV-1120H / 900H V5 (16 CH)

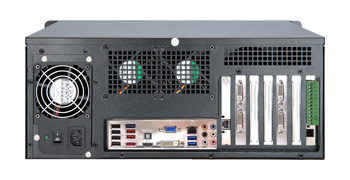

Rear View - GV-900H V5 - 32CH
Rear View - GV-800H V5 - 32CH
Rear View - GV-800H V5 - 16CH

GV-Video Loop Through Card This card can take the video signal from the GV-Hot Swap DVR V5 and then split it into 16 signals while maintaining video quality. It can meet the need for multiple spot monitors.
** This device is not available for 4U (8-bay) and 3U (8-bay) models.
GV-IO 12-In Card

With 12-point digital inputs, this card can expand the GV-Hot Swap DVR V5 up to 16 sensor inputs.
** This device is not available for 3U (8-bay) models.

GV-IO 12-Out Card With 12-point relay outputs, this card can expand the GV-Hot Swap DVR V5 up to 16 alarm outputs.
** This device is not available for 3U (8-bay) models.
GV-Data Capture V3 Box GV-Data Capture V3 Box can integrate the GV-Hot Swap DVR V5 to an electronic POS system, while GV-Data Capture V3E Box can establish such integration through LAN or Internet.
GV-Hub V2 An easy way for serial port extension. This hub can add 4 RS-232/RS-485 serial ports through the GV-Hot Swap DVR V5's USB port.
GV-COM V2 This unit can add 1 RS-232/RS-485 serial port through the GV-Hot Swap DVR V5's USB port.
GV-IO Box (4 Ports) GV-IO Box 4 provides 4 inputs and 4 relay outputs, and supports both DC and AC output voltages. A USB port is also provided for PC connection.
GV-IO Box (8 Ports) GV-IO Box 8 provides 8 inputs and 8 relay outputs, and supports both DC and AC output voltages. A USB port is also provided for PC connection.
GV-IO Box (16 Ports) GV-IO Box 16 provides 16 inputs and 16 relay outputs, and supports both DC and AC output voltages. A USB port is also provided for PC connection.
GV-Joystick GV-Joystick facilitates the PTZ camera control. It can be either plugged into the GV-Hot Swap DVR V5 for independent use or connected to GV-Keyboard to empower the operation. However, this device can only work on GV-System version 8.2 or later.
RAID Controller (0 / 1 / 5 / 6) The RAID Controller supports a maximum of 8 SATA hard drives and enhances data protection. The supported RAID types include RAID 0, RAID 1, RAID 5 and RAID 6.
** This device is only available for all 3U (8-bay) and 4U (8 / 4-bay) models.
AVP Dongle Internally inserted to the GV-Hot Swap DVR V5, the AVP Dongle provides the functions of advanced video analysis in GV-System: Panorama View, Video Stabilizer, Defogging, Crowd Detection, Advanced Scene Change, Advanced Missing Object and Advanced Unattended Object.

  • GV-Hot Swap DVR System V5 x 1
  • Video and Audio Cable
    • GV-5016H V5 (32-Ch)
      LFH-Type Audio and Video Cable x 2
    • GV-5016H V5 (16-Ch)
      LFH-Type Audio and Video Cable x 1
    • GV-1480H / 1240H / 1120H V5 (32-Ch)
      DVI Video Cable with TV Out x 2,
      DVI Audio Cable x 2
    • GV-1480H / 1240H / 1120H V5 (16-Ch)
      DVI Video Cable with TV Out x 1,
      DVI Audio Cable x 1
    • GV-900H V5 (32-Ch)
      DVI Video and Audio Cable x 4
    • GV-900H V5 (16-Ch)
      DVI Video and Audio Cable x 2
    • GV-800H V5 (32-Ch)
      DVI Video and Audio Cable x 2
    • GV-800H V5 (16-Ch)
      DVI Video and Audio Cable x 1
  • AC Power Cord x 1
  • GV-Keyboard Package x1
  • GV-IR Remote Control x 1
  • GV-IR Remote Control Receiver x 1 *
    * Only available for 4U (8 / 4-bay) models
  • Key for hard disk safety lock x 1*
    * Only available for 4U (8 / 4-bay) models
  • Self-Stick Rubber Pad x 4
  • Recovery DVD x 1
  • Nero CD Burning Software x 1
  • Surveillance System Software DVD x 1
  • GV-Hot Swap DVR System V5 User's Manual x 1
  • GV-Hot Swap DVR System V5 Quick Start Guide x 1
