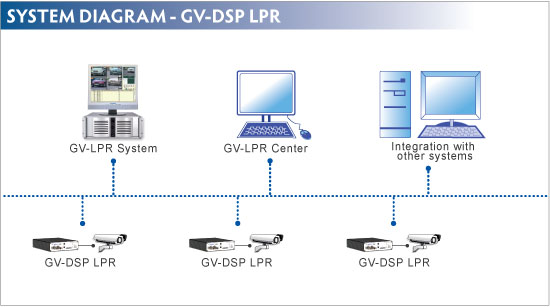

The GV-DSP LPR is a Linux-based system built in a small box without a fan and hard drive. Integrating with a Web server, the GV-DSP LPR can deliver live images and host its own Web site, as well as sending recognition results and captured images to the GV-LPR System and GV-LPR Center. The GV-DSP LPR is beneficial for license plate recognition over long distance and in an outdoor environment.
FEATURES
Non-PC based solution for 1 port traffic or mobile license plate recognition
Wide operating temperature range
Web-based configuration for image, security settings and firmware upgrade
Recognition triggered by video motion detection or sensor inputs

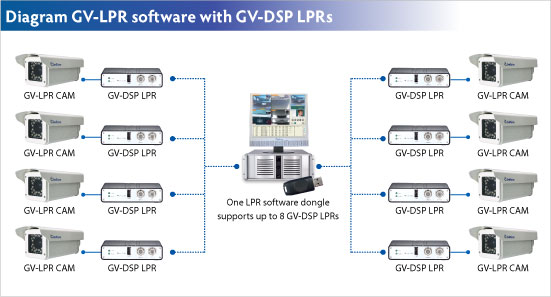

Compatible with GV-LPR System and GV-LPR Center
Digital watermark
Hardware watchdog
IP address filtering
Wi-Fi
UMTS
GPS tracking
Recognition results, images and live videos compatible with other system through OCX SDK
Specifications
Video Input/Output
1 Video In, 1 TV Out
Video Compression
JPEG
Live Resolutions
D1, CIF
Live Frame Rate
NTSC
1, 3, 5, 7, 10
PAL
1, 3, 5, 8, 12
Image Setting
Brightness, Contrast, Saturation, Hue
Alarm and Event Management
Events triggered by motion detection or sensor inputs
Central monitoring by LPR Center
Relay outputs triggered by sensor inputs or remotely by LPR Center
Connectors
Video
1 input (BNC port)
Ethernet
RJ-45, 10/100 Mbps
USB
1 USB 2.0 (only for UMTS)
TV-Out
1 output (BNC port)
Local Storage
Micro-SD/SDHC memory card slot (for Class 6 card or above)
I/O Port
2 digital inputs, 2 digital outputs
GPS
1 RS-232
Security
IP address filtering
Installation
Web-based configuration
Management Maintenance
Firmware upgrade through Web browser
Protocol
HTTP, TCP, UDP, DHCP, NTP, DDNS
Operation Temperature
-20 ~ 55掳C (-4 ~ 131掳F)
Dimensions (W x D x H)
123 x 106 x 25 (mm) / 4.84 x 4.17 x 0.98 (in)
Power
DC 12V, 1A, 50~60 Hz
Weight
0.345 (kg) / 0.76 (lb)
Country Support
Australia, Austria, Belgium, Brazil, Bulgaria, Chile, China, Columbia, Cyprus, Czech Republic, France, Germany, Guernsey, Hong Kong, Hungary, Ireland, Israel, Italy, Malaysia, Mexico, New Zealand, Norway, Poland, Portugal, Russia, South Africa, Spain, Taiwan, UK, USA
