GV-CS1320

简介

GV-CS1320是一款内置一个2MP摄像头和13.56MHz读卡器的门禁控制器。

GV-CS1320可识别高达4万个用户对应的识别卡和授权访问。通过广角镜头、卡片模式和人脸模式一体化，使得GV-CS1320在允许通行之前和卡片验证一起执行人脸识别。

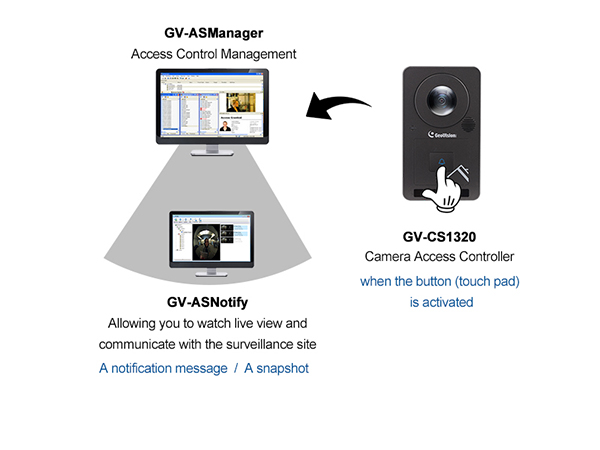

请求通行的来访者也可以使用电铃按钮（触摸板）获得权限。当GV-CS1320通过以太网和GV-ASManager连接时，一旦电铃按钮被触发，在GV-ASNotify上都会生成通知信息以及快照截图。管理者可使用GV-ASNotify查看即时视频并可以通过麦克风和扬声器和监控现场进行交流。

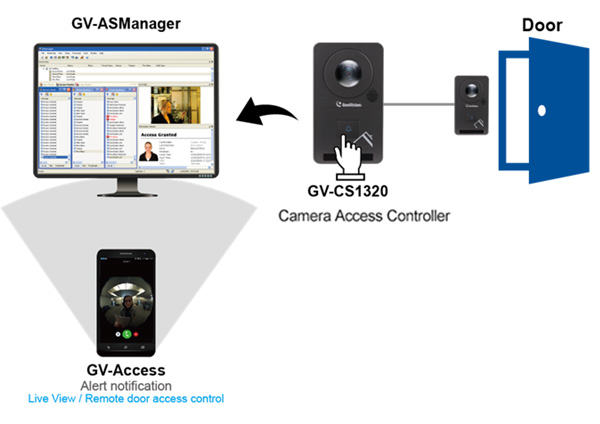

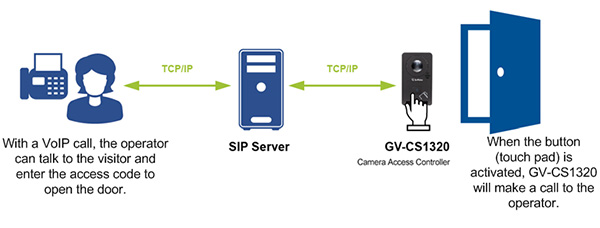

同样，管理者也可以在允许通行之前开启手机APP GV-Access与门前的来访者进行视频和语音交流。将GV-ASManager加入GV-Access之后，管理者将在门铃按钮触发之后得到一个报警通知。当门铃按钮被触发时，GV-CS1320将通过VOIP互联网给管理者打一个电话。管理者可以和访问者之间进行通信并输入访问密码来开门。

这种一体化全功能方案将不需要在安装了读卡器和门禁系统之外单独安装并维护一个摄像头。

特点
规格
尺寸

摄像机

200万像素超低照度逐行扫描CMOS
最低照度0.02Lux
双码流，H264或MJPEG编码
在 1920 x 1080分辨率下高达15帧。
日夜功能（红外截止滤光片）
内置红外有效距离3米
IP66防护等级
12V DC, 2.5A / PoE+ (IEEE 802.3at)
内置麦克风和扬声器
宽动态WDR
内置迷你SD卡插槽
180度全景视图
支持ONVIF协议

读卡器

内置13.56 MHz 读头(Mifare DESFire, MIFARE Plus and MIFARE Classic)
卡片模式加人脸检测

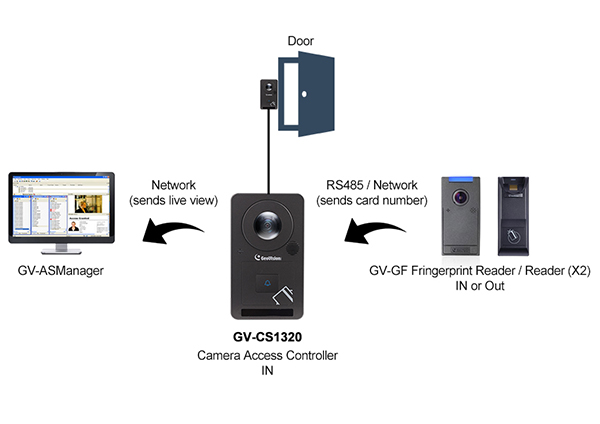

可通过RS485或网络接口连接2个读卡器

Access Control

可以通过时间表来控制不同的入口控制模式：单独卡片模式（默认），卡和人脸检测混合模式。
单门（单向或双向控制）
门铃按钮（触摸板）用于对讲模式
使用卡模式接收现场画面和捕获快照。
支持防尾随APB
2路输入，干接点（门传感器/出门按钮）
1路继电器输出(30V DC, 0.5A)

RS-485 / 网络连接

GV-ASNotify

GV-Access Mobile App

VoIP Calls

摄像机
图像传感器		1/2.8" progressive scan CMOS
图像像素		1920(H) x 1080 (V)
最低照度	黑白	0.02Lux

快门速度		Automatic, Manual (1/5 ~ 1/8000 sec)
白平衡		Automatic, Manual (2800K ~ 8500K)
信噪比		52db
光学镜头
百万像素		Yes
日夜转换		Yes (红外截止滤光片)
镜头类型		Fixed
焦距		1.7 mm
最大光圈		F/2.5
镜头接口		M12
图像格式		1/2.8"
水平视角		180°
红外灯数量		2
最大红外距离		3m
操作
视频编码		H.264, MJPEG
视频流		H.264或MJPEG双码流
视频分辨率	码流1	1920 x 1080
	码流2	640 x 360
帧率		15 fps at 1920 x 1080 * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
图像设定		Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Image Orientation, Shutter Speed
音频编码		G.711
网络
接口		10/100 Ethernet
协议		HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA RTSP, PSIA, SNMP, QoS (DSCP) , ONVIF (Profile S) and (Profile C)
机械部件
接口		迷你SD卡插槽
连接器	电源	2-pin terminal block
	以太网	Ethernet (10/100 Base-T), RJ-45 Connector
	RS-485	RS-485 +, RS-485 -
	音频	Built-in microphone and speaker
常规
工作温度		-20°C ~ 50 °C /-4 °F ~ 122 °F
湿度		10% to 90% (no condensation)
电源		12V DC, 2.5A /POE+(IEEE 802.3at)
最大功率		25.5 W
认证		CE, FCC, RCM, RoHS compliant
尺寸		137 x 80 x 34.5 mm (5.4 x 3.15 x 1.36 in)
重量		315 g (0.69 lb)
防护等级		IP66
网页界面
Installation Management		Web-based configuration
Maintenance		Firmware upgrade through Web Browser or Utility
Access from Web Browser		Camera live view, change video quality, bandwidth control, image snapshot, audio, picture in picture, picture and picture
语言		英语 / 法语/ 葡萄牙语/ 俄语/ 西班牙语 / 繁体中文
应用
Network Storage		GV-System (GV-DVR/NVR), GV-VMS
Mobile Phone support		embedded 3GPP/ISMA browser
Live Viewing		Browser (IE, Edge, Chrome, Firefox)
Access Control / LPR Management		GV-ASManager
控制器
CPU		32-bit RISC microprocessor
用户卡片数量		40000张
频率		13.56 MHz for ISO14443A (Mifare DESFire, Mifare Plus and Mifare Classic)
Event Buffer		50,000 events and log data
RS-485接口		1 RS-485 interface for GV-Readers (max. 2 readers)
TCP/IP 接口		1 TCP/IP interface for GV-CR420 and GV-GF1921 / 1922 (max. 2 readers)
连接协议		TCP/IP
数字I/O		2 inputs, dry contact NO/NC
		1 relay outputs (30V DC, 0.5A)
支持的ID格式		Built-in GID and UID reader

注意:
1. GV-CS1320不支持第三方读卡器
2. 支持人脸侦测模式，要避免光线从人背后直射过来
3. 规格如有变动恕不另行通知

GV-CS1320 x 1
Mounting Plate
Standard Screw x 2
Plastic Screw Anchor x 2
Security Screw
Torx Wrench
Silica Gel Bag
Micro SD Card 2 GB
Software DVD
Warranty Card

Optional devices can expand the capabilities and versatilities of your GV-AS Controllers. Consult your sales representative for more information.

GV-Reader 1352 V2	GV-Reader 1351 V2 is a card reader that uses a 13.56 MHz frequency. It has both Wiegand and RS-485 outputs that can be connected to any standard access control panel.
GV-RK1352	GV-RK1352 is a card reader with keypad that uses a 13.56 MHz frequency. The reader has both Wiegand and RS-485 outputs that can be connected to any standard access control panel.
GV-R1352	GV-R1352 is a card reader that uses a 13.56 MHz frequency. The reader has both Wiegand and RS-485 outputs that can be connected to any standard access control panel.
GV-DFR1352	GV-DFR1352 is a card reader that uses a 13.56 MHz frequency. The reader has both Wiegand and RS-485 outputs that can be connected to any standard access control panel.
GV-GF Fingerprint Reader	The reader supports three operation modes: Fingerprint Only, Fingerprint + Card and Card Only. In Fingerprint Only mode, the fingerprints are enrolled through GV-ASManager. In Fingerprint + Card mode, the fingerprint templates are stored on the user card. In Card Only mode, the users only need to swipe the card to be granted access. Readers with optical and capacitance sensors are available.
GV-CR420	GV-CR420 is a card reader with a built-in 4MP wide angle IP camera. The card reader recognizes identification cards and transmits live view through network connection.
Push Button Switch	The push button switch can be integrated with access control system, allowing door exit by momentarily activating or deactivating the electric locking device. Both American standard and European standard push buttons are available.
GV-IB25 / 65 / 85 Infrared Button	The GV-IB25 / 65 / 85 Infrared Button detects infrared movement within 3 to 12 cm and allows you to open the door with a wave of hand.
Electric Lock	Three types of electric locks are available: electromagnetic lock, electric bolt and electric strike.
GV-RU9003	Three types of electric locks are available: electromagnetic lock, electric bolt and electric strike.
GV-AS ID Card / Key Fob & GV-UHF Tag	GV-AS ID Cards and GV-AS ID Tags are ideal for business and residential environment, where access control is important for security reasons. 125 kHz and 13.56 MHz cards and tags are available.
Power Adapter	Contact your sales representative for the countries and areas supported.
GV-IO BOX (4 Ports V1.2)	GV-IO Box 4 Ports V1.2 provides 4 inputs and 4 relay outputs. It supports both DC and AC output voltages, and provides a USB port for PC connection.
