GV-CR1320



简介

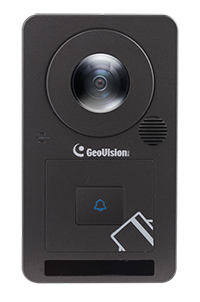

GV-CR1320 为内置200万像素摄像机及13.56 MHz读卡机。
GV-CR1320 支持进阶的刷卡及人脸通行模式，刷卡人的脸部必需先出现于摄像机镜头前方，此时系统才会接受此刷新行为
(仅侦测画面出现人脸轮廓，非人脸比对)。
若有访客来访时，可以通过按压 GV-CR1320 的门铃按钮（触控板）通过VoIP电话(SIP 协议)的方式通知用户以做开门动作。

VoIP Calls 整合:
当访客按下门铃时，GV-CR1320 将会经由 VoIP 协议(SIP 协议)通过电话通知，管理员可以通过电话跟访客沟通及开门。


  • 特点
  • 规格

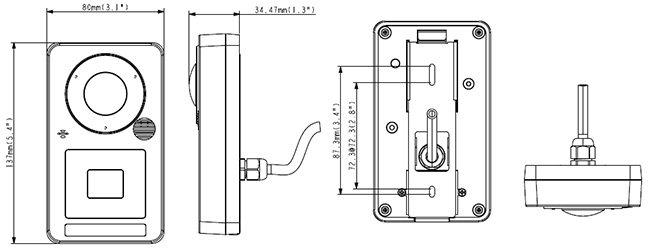

  • 尺寸

摄像机

  • 200万像素超低照度逐行扫描CMOS
  • 最低照度0.02Lux
  • 双码流，H264或MJPEG编码
  • 在 1920 x 1080分辨率下高达15帧。
  • 日夜功能（红外截止滤光片）
  • 内置红外有效距离3米
  • IP66防护等级
  • 12V DC, 2.5A / PoE+ (IEEE 802.3at)
  • 内置麦克风和扬声器
  • 宽动态WDR
  • 内置迷你SD卡插槽
  • 180度全景视图

读卡器

  • 内置13.56 MHz 读头(Mifare DESFire, MIFARE Plus and MIFARE Classic)
  • 支持 GV 门禁卡及钥匙圈
  • 支持刷卡加人脸侦测  (仅侦测画面出现人脸轮廓，非人脸比对)
  • 支持网络设定界面
  • 通过 Wiegand 协议与第三方控制器整合

Access Control

  • 支持多种门禁管制排程:  仅读卡（预设），读卡机人脸侦测模式
  • 门铃按钮（触摸板）用于对讲模式
  • 读卡时传送实时影像及拍照  (搭配 GV 控制器)
  • 2路输入，干接点（门传感器/出门按钮）
  • 1路继电器输出(30V DC, 0.5A)
使用人脸侦测功能，刷卡人不能遮蔽脸部

摄像机
图像传感器 1/2.8" progressive scan CMOS
图像像素 1920(H) x 1080 (V)

最低照度

 黑白 0.02Lux
快门速度 Automatic, Manual (1/5 ~ 1/8000 sec)
白平衡 Automatic, Manual (2800K ~ 8500K)
信噪比 52db
光学镜头
百万像素 Yes
日夜转换 Yes (红外截止滤光片)
镜头类型 Fixed
焦距 1.7 mm
最大光圈 F/2.5
镜头接口 M12
图像格式 1/2.8"
水平视角 180°
红外灯数量 2
最大红外距离 3m
操作
视频编码 H.264, MJPEG
视频流 H.264或MJPEG双码流
视频分辨率 码流1 1920 x 1080
码流2 640 x 360
帧率 15 fps at 1920 x 1080
* The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
图像设定 Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Image Orientation, Shutter Speed
音频编码 G.711
网络
接口 10/100 Ethernet
协议 HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA RTSP, PSIA, SNMP, QoS (DSCP) , ONVIF (Profile S) and (Profile C)
机械部件
接口 迷你SD卡插槽
连接器 电源 2-pin terminal block
以太网 Ethernet (10/100 Base-T), RJ-45 Connector
RS-485 RS-485 +, RS-485 -
音频 Built-in microphone and speaker
常规
工作温度 -20°C ~ 50 °C /-4 °F ~ 122 °F
湿度 10% to 90% (no condensation)
电源 12V DC, 2.5A /POE+(IEEE 802.3at)
最大功率 25.5 W
认证 CE, FCC, RCM, RoHS compliant
尺寸 137 x 80 x 34.5 mm (5.4 x 3.15 x 1.36 in)
重量 315 g (0.69 lb)
防护等级 IP66
网页界面
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser Camera live view, change video quality, bandwidth control, image snapshot, audio, picture in picture, picture and picture
语言 英语 / 法语/ 葡萄牙语/ 俄语/ 西班牙语 / 繁体中文
应用
Network Storage GV-System (GV-DVR/NVR), GV-VMS
Mobile Phone support embedded 3GPP/ISMA browser
Live Viewing Browser (IE, Edge, Chrome, Firefox)
Access Control / LPR Management GV-ASManager
控制器
CPU 32-bit RISC microprocessor
用户卡片数量 40000张
频率 13.56 MHz for ISO14443A (Mifare DESFire, Mifare Plus and Mifare Classic)
Event Buffer 50,000 events and log data
RS-485接口 1 RS-485 interface for GV-Readers (max. 2 readers)
TCP/IP 接口 1 TCP/IP interface for GV-CR420 and GV-GF1921 / 1922
(max. 2 readers)
连接协议 TCP/IP
数字I/O 2 inputs, dry contact NO/NC
1 relay outputs (30V DC, 0.5A)
支持的ID格式 Built-in GID and UID reader
注意:
1. GV-CS1320不支持第三方读卡器
2. 支持人脸侦测模式，要避免光线从人背后直射过来
3. 规格如有变动恕不另行通知
  • GV-CS1320 x 1
  • Mounting Plate
  • Standard Screw x 2
  • Plastic Screw Anchor x 2
  • Security Screw
  • Torx Wrench
  • Silica Gel Bag
  • Micro SD Card 2 GB
  • Software DVD
  • Warranty Card

Optional devices can expand the capabilities and versatilities of your GV-AS Controllers. Consult your sales representative for more information.
GV-Reader 1352 V2 GV-Reader 1351 V2 is a card reader that uses a 13.56 MHz frequency. It has both Wiegand and RS-485 outputs that can be connected to any standard access control panel.
GV-RK1352 GV-RK1352 is a card reader with keypad that uses a 13.56 MHz frequency. The reader has both Wiegand and RS-485 outputs that can be connected to any standard access control panel.
GV-R1352 GV-R1352 is a card reader that uses a 13.56 MHz frequency. The reader has both Wiegand and RS-485 outputs that can be connected to any standard access control panel.
GV-DFR1352 GV-DFR1352 is a card reader that uses a 13.56 MHz frequency. The reader has both Wiegand and RS-485 outputs that can be connected to any standard access control panel.
GV-GF Fingerprint Reader The reader supports three operation modes: Fingerprint Only, Fingerprint + Card and Card Only. In Fingerprint Only mode, the fingerprints are enrolled through GV-ASManager. In Fingerprint + Card mode, the fingerprint templates are stored on the user card. In Card Only mode, the users only need to swipe the card to be granted access. Readers with optical and capacitance sensors are available.
GV-CR420 GV-CR420 is a card reader with a built-in 4MP wide angle IP camera. The card reader recognizes identification cards and transmits live view through network connection.
Push Button Switch The push button switch can be integrated with access control system, allowing door exit by momentarily activating or deactivating the electric locking device. Both American standard and European standard push buttons are available.
GV-IB25 / 65 / 85 Infrared Button The GV-IB25 / 65 / 85 Infrared Button detects infrared movement within 3 to 12 cm and allows you to open the door with a wave of hand.
Electric Lock Three types of electric locks are available: electromagnetic lock, electric bolt and electric strike.
GV-RU9003 Three types of electric locks are available: electromagnetic lock, electric bolt and electric strike.
GV-AS ID Card / Key Fob & GV-UHF Tag GV-AS ID Cards and GV-AS ID Tags are ideal for business and residential environment, where access control is important for security reasons. 125 kHz and 13.56 MHz cards and tags are available.
Power Adapter Contact your sales representative for the countries and areas supported.
GV-IO BOX (4 Ports V1.2) GV-IO Box 4 Ports V1.2 provides 4 inputs and 4 relay outputs. It supports both DC and AC output voltages, and provides a USB port for PC connection.
