Working as a standalone solution, GV-AS110 is a card reader and also a single door controller. It is possible to add one more card reader to GV-AS110 for entry and exit applications. GV-AS110 has the capability to store up to one thousand cards. When GV-AS110 is being used as a standalone unit, the programming is either done on the keypad or from the software GV-ASManager through the RS-485 connection.
GV-AS110 is suitable not only for any normal door control but also for parking gate and elevator control. GV-AS110 is an economic solution for access control.
Features
Specifications
Options
Packing List
1,000 / 40,000 cards (standalone / networked or RS-485 mode)
Easy programming from keypad
Anti-Passback (APB) support
Built-in 3 digital inputs and 2 relay outputs
1 Wiegand output (26 ~ 64 bits) for extra reader programming

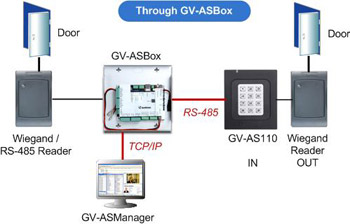

1 door expandable to 2 doors with optional GV-ASBox
Built-in 13.56MHz Reader
Specifications
System Requirements
GV-ASManager Version
Hardware
CPU
32-bit RISC microprocessor
Number of User Cards
1,000 / 40,000 cards (standalone / networked or RS-485 mode)
Frequency
13.56 MHz for ISO14443A
(, and )
Event Buffer
65,536 events and log data
Power
100 ~ 240V AC, 50 ~ 60Hz
Wiegand Interface
1 Wiegand interface, 26 ~ 64 bit format
12V DC Power Supply, 200mA
Communication Protocol
RS-485
Digital I/O
Input
3 inputs, dry contact, NO / NC
Output
2 outputs
Operating Temperature
-20 °C ~ 60 °C / -4 °F ~ 140 °F
Operating Humidity
10 ~ 90% RH (non-condensing)
Dimensions (W x H x D)
95 x 108 x 23 mm / 3.74 x 4.25 x 0.91 in
Weight
200 g / 0.44 lb
Certification
IP54, CE, FCC, RoHS
Note: Specifications are subject to change without notice.
Optional devices can expand the capabilities and versatilities of your GV-AS Controllers. Consult your sales representative for more information.
GV-Reader 1251 is a card reader that uses a 125 kHz frequency. It has both Wiegand and RS-485 outputs that can be connected to any standard access control panel.
GV-Reader 1351 V2 is a card reader that uses a 13.56 MHz frequency. It has both Wiegand and RS-485 outputs that can be connected to any standard access control panel.
GV-RK1352 is a card reader with keypad that uses a 13.56 MHz frequency. The reader has both Wiegand and RS-485 outputs that can be connected to any standard access control panel.
GV-R1352 is a card reader that uses a 13.56 MHz frequency. The reader has both Wiegand and RS-485 outputs that can be connected to any standard access control panel.
GV-DFR1352 is a card reader that uses a 13.56 MHz frequency. The reader has both Wiegand and RS-485 outputs that can be connected to any standard access control panel.
The reader supports three operation modes: Fingerprint Only, Fingerprint + Card and Card Only. In Fingerprint Only mode, the fingerprints are enrolled through GV-ASManager. In Fingerprint + Card mode, the fingerprint templates are stored on the user card. In Card Only mode, the users only need to swipe the card to be granted access. Readers with optical and capacitance sensors are available.
GV-CR420 is a card reader with a built-in 4MP wide angle IP camera. The card reader recognizes identification cards and transmits live view through network connection.

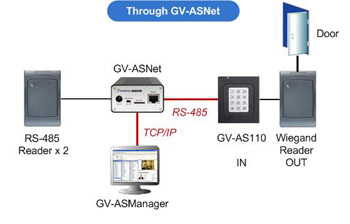

Only works with GV-AS100 / 110 / 120. The device can add Network function, 1 Wiegand interface, 8 additional inputs and outputs to GV-AS100, GV-AS110 and GV-AS120.
Only works with GV-AS100 / 110 / 120. GV-Hub can convert the standard RS-232 signal of up to 4 controllers to RS-485, allowing the controllers to connect to computers.
Only works with GV-AS100 / 110 / 120. GV-COM can convert the standard RS-232 signal of one controller to RS-485, allowing the controller to connect to a computer.
Only works with GV-AS100 / 110 / 120. GV-Net / IO Card can convert the standard RS-232 signal of one controller to RS-485, allowing the controller to connect to a computer.
The push button switch can be integrated with access control system, allowing door exit by momentarily activating or deactivating the electric locking device. Both American standard and European standard push buttons are available.
GV-AS ID Cards and GV-AS ID Tags are ideal for business and residential environment, where access control is important for security reasons. 125 kHz and 13.56 MHz cards and tags are available.
